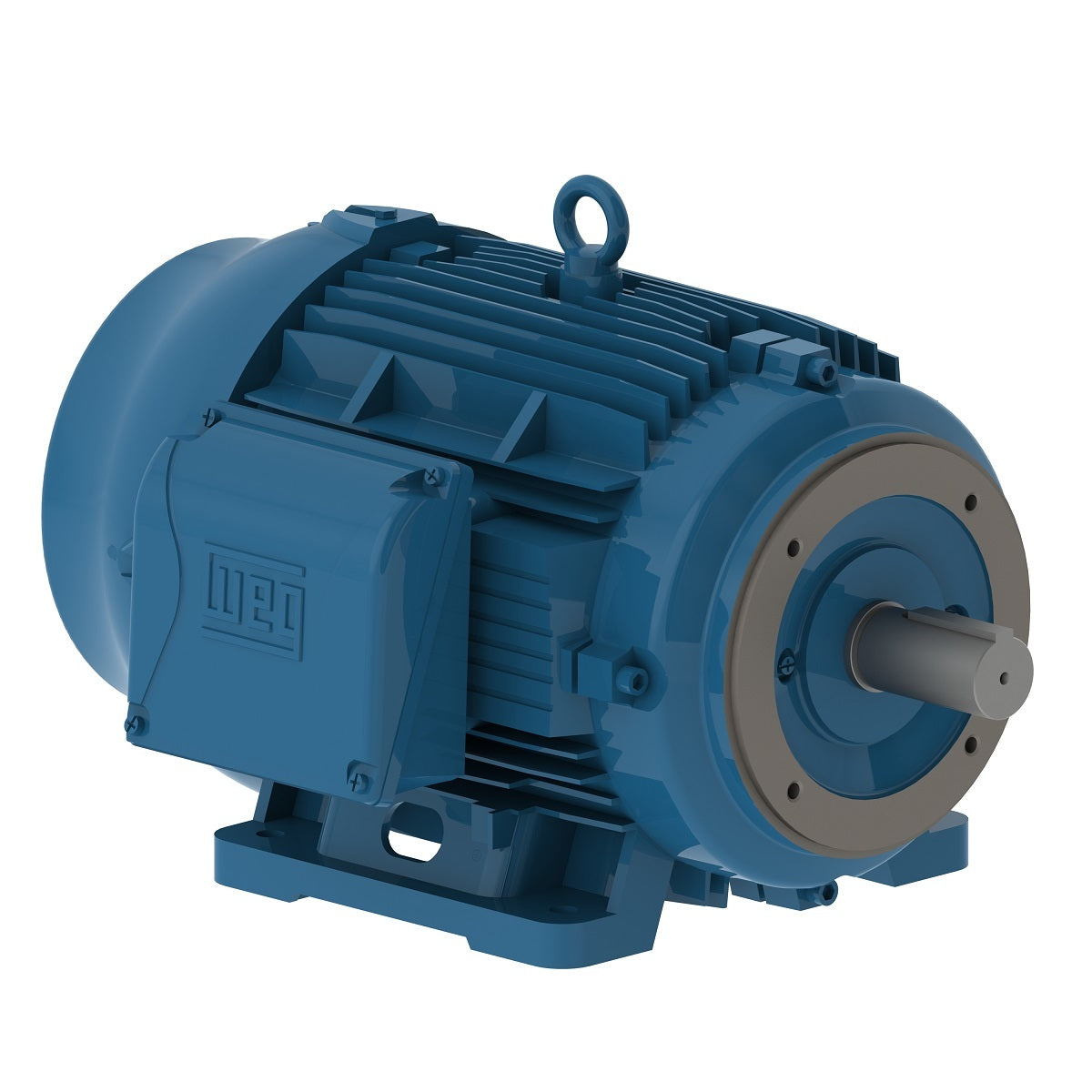

Weg Electric 00312ET3E213JM-W22, 3 Hp, 213JM Frame, 1200 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JM NEMA Premium Efficiency

00312ET3E213JM-W22, 3 Hp, 213JM Frame, 1200 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JM NEMA Premium Efficiency

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213JM
Output 3 HP (2.2 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 8.83/4.41 A
L. R. Amperes 61.8/30.9 A
LRC 7.0x(Code K)
No load current 5.50/2.75 A
Rated torque 13.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 104s (cold) 58s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
