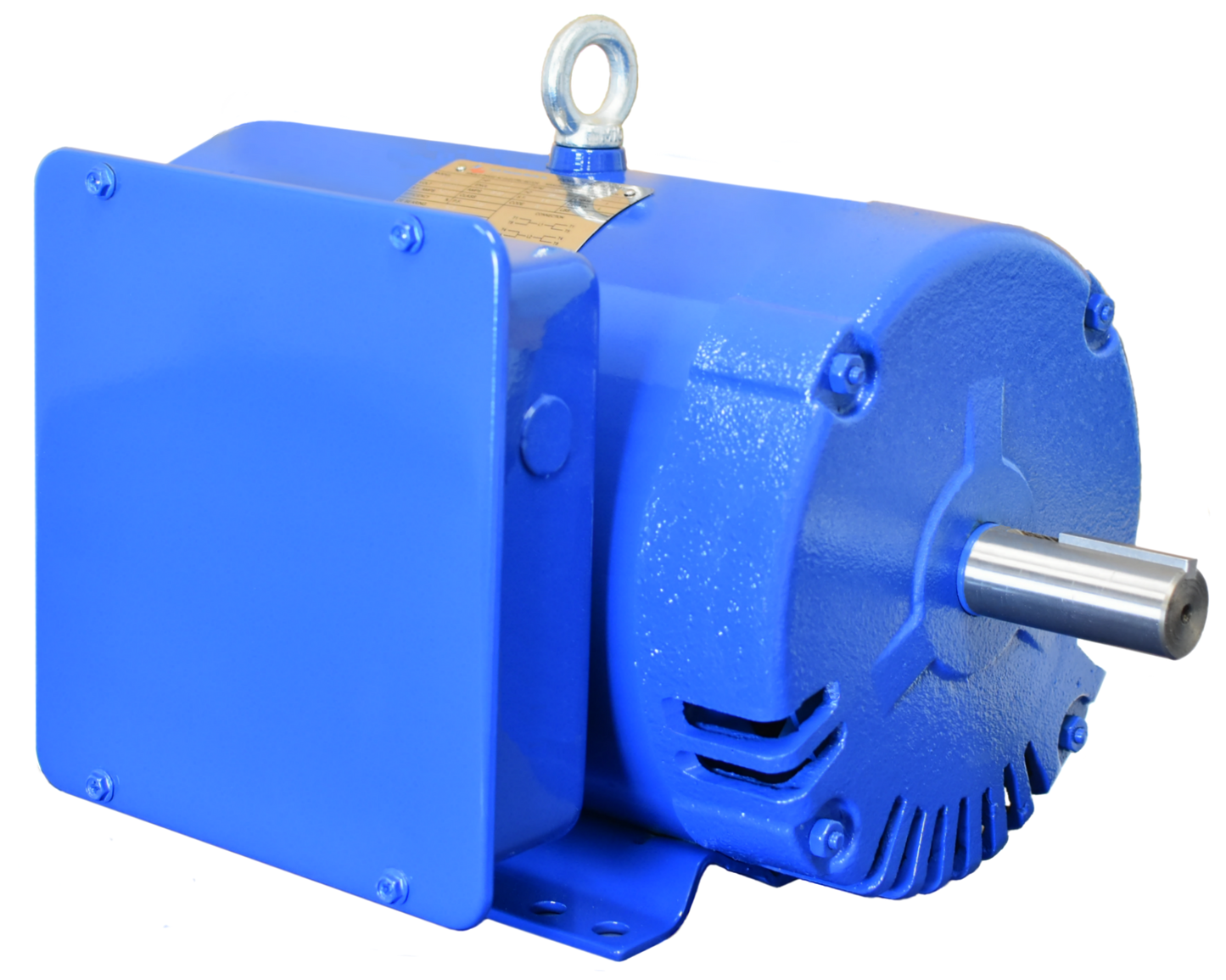

North American Electric D184T5S4C, 5 HP, 1800 RPM, 184T Frame, 208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Compressor Duty, Rolled Steel

D184T5S4C, 5 HP, 1800 RPM, 184T Frame, 208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Compressor Duty, Rolled Steel

APPLICATIONS:

General purpose use on pumps, fans, conveyors, blowers, air compressors, refrigeration equipment, industrial equipment, milling machines, tools, farm equipment, aereation equipment and other general purpose applications where contaminants are minimal.

Engineering Data

HP 5
RPM 1800
Frame 184T
Mult. Sym. M9
Volts 208-230
Enclosure ODP
F.L. Eff. 83.4
"C" Dim. 15.8"
F.L. Amps 20.2

High Efficiency Design
1.15 Service Factor @ 60 hertz
Vacuum Pressure Impregnation for all windings
Sealed bearings
Class B insulation system, class B rise at full load
40° C ambient continuous duty
Stainless steel nameplate and zinc plated hardware
Feet are dual drilled for mounting flexibility
High starting torques
NEMA Design B performance
Rolled Steel frame construction; Cast Iron endbells
IP22 Protection as standard
CSA + C + US Certification
Meets or exceeds NRCan efficiency requirements
ISO 9001 Certification
