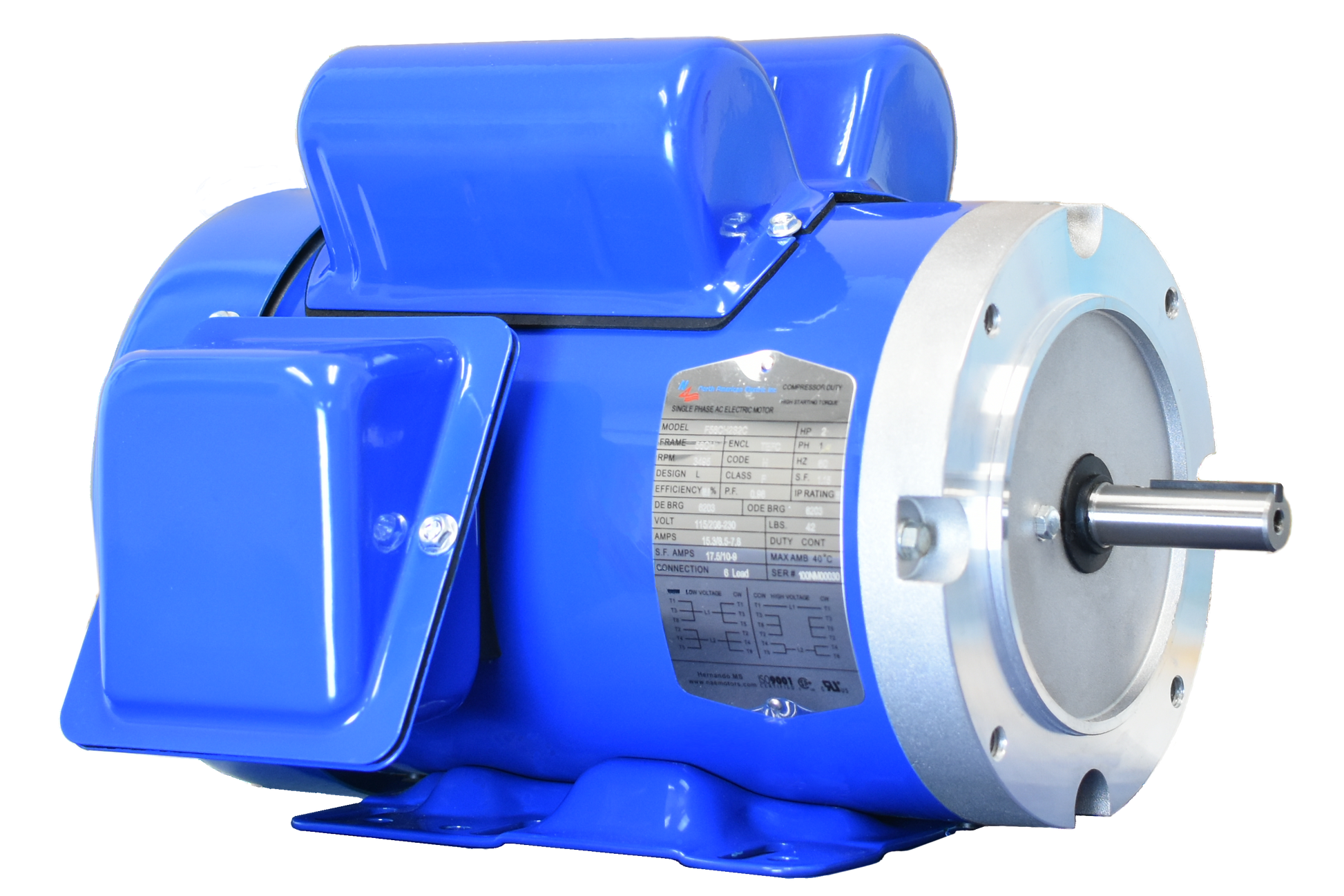

North American Electric F56CH2S2C 2 HP, 3600 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

North American Electric F56CH2S2C 2 HP, 3600 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

$489.62
$489.62
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$489.62 $465.14
Sale

F56CH2S2C, 2 HP, 3600 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

Engineering Data

HP 2
RPM 3600
Frame 56CH
Mult. Sym. M1
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 86.6
Notes 1
"C" Dim. 13.1
F.L. Amps 7.8

High Efficiency Design
High starting torques
1.15 Service Factor @ 60 hertz
NEMA Design B performance
Vacuum Pressure Impregnation for all windings
Rolled Steel frame construction; Aluminum endbells
Sealed bearings
C-Flange with Removable Feet as standard
Class F insulation system, class B rise at full load
IP55 Protection as standard; Suitable for indoor/outdoor use
40° C ambient continuous duty
CSA + C + US Certification
Stainless steel nameplate and zinc plated hardware
Meets or exceeds NRCan efficiency requirements
56CH Frames: Feet are dual drilled for mounting flexibility
ISO 9001 Certification
