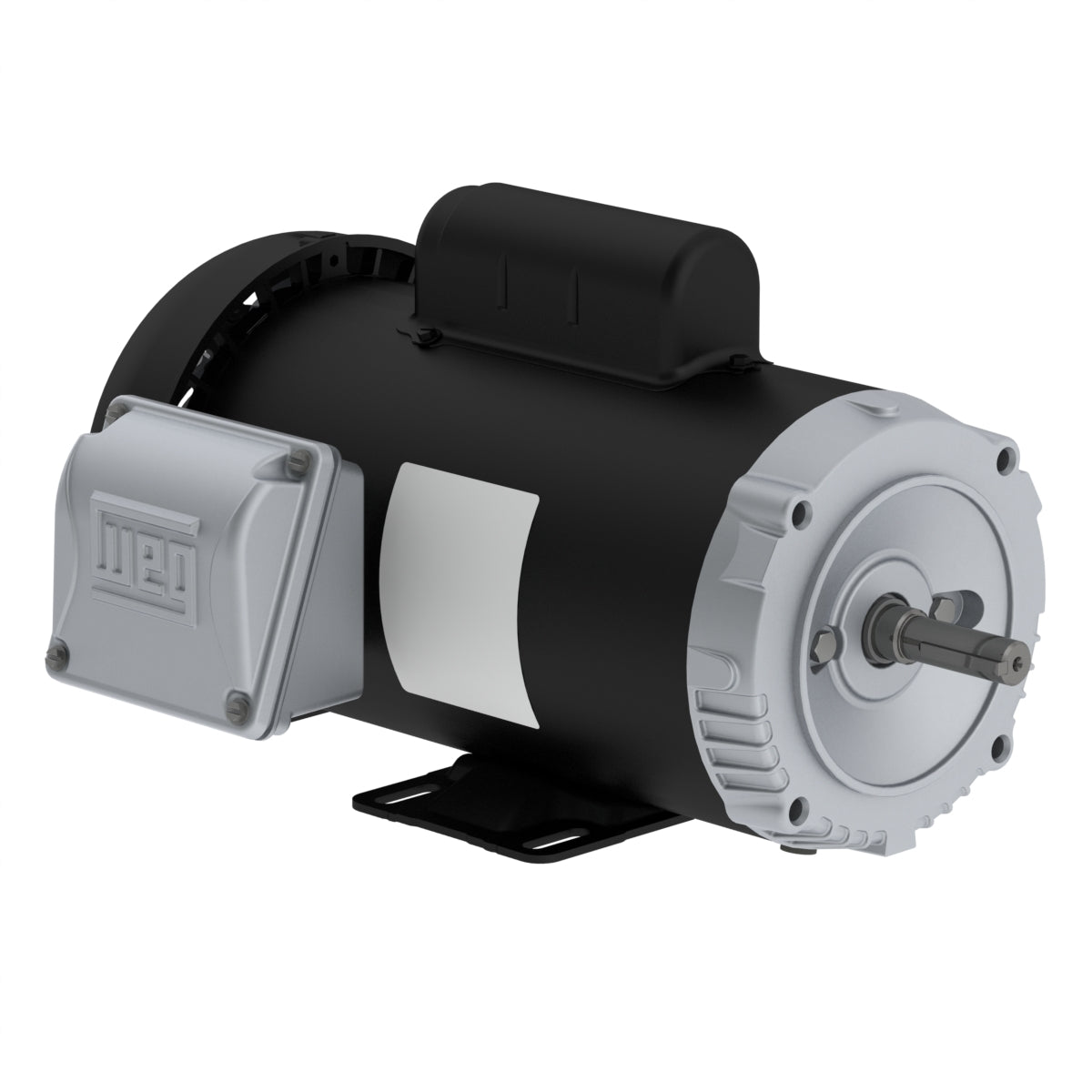

Weg Electric .7518ES1B56C-S, 3/4 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

.7518ES1B56C-S, 3/4 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 0.75 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/208-230 V
Rated current 10.6/5.86-5.30 A
L. R. Amperes 67.8/37.5-33.9 A
LRC 6.4x(Code M)
No load current 8.00/3.45-4.00 A
Rated torque 2.26 ft.lb
Locked rotor torque 300 %
Breakdown torque 270 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0778 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
