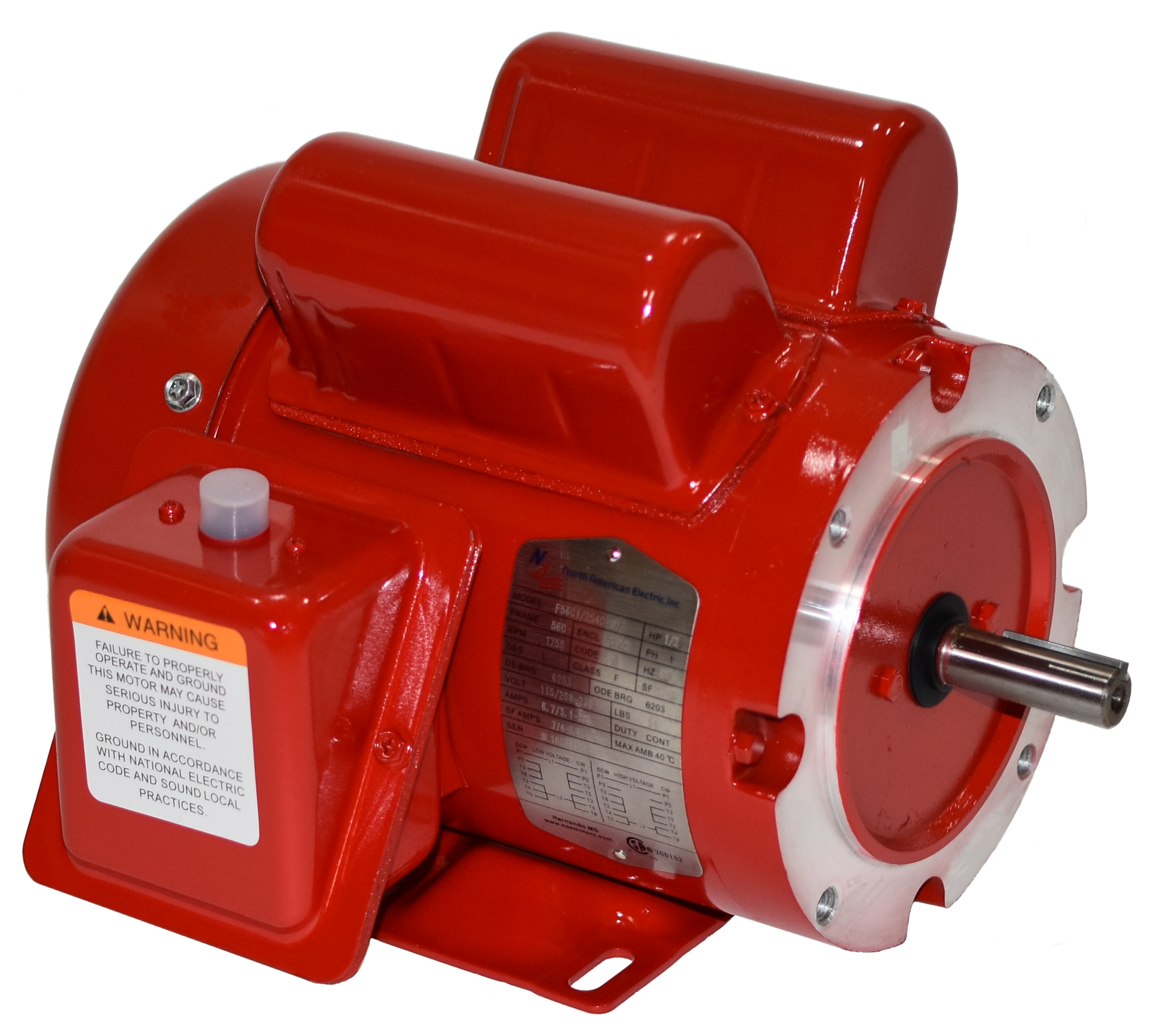

North American Electric F56C1/2S4C-MO, 1/2 HP, 1800 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

North American Electric F56C1/2S4C-MO, 1/2 HP, 1800 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

$314.21
$314.21
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$314.21 $298.50
Sale

F56C1/2S4C-MO, 1/2 HP, 1800 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

Engineering Data

HP 0.5
RPM 1800
Frame 56C
Mult. Sym. M1
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 59.3
Notes 1
"C" Dim. 11.7
F.L. Amps 3.5

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
