Industrial Motors

C200-02200056A10101AB100, 1 1/2 HP, 230 Vac 1/3-Phase Input, 230 Vac, 3-Phase Output, Nema 1 Enclosure, Variable Frequency Drives

C200-02200056A10101AB100, 1 1/2 HP, 230 Vac 1/3-Phase Input, 230 Vac, 3-Phase Output, Nema 1 Enclosure, Variable Frequency Drives

$456.00
$456.00
Sale Sold out
Shipping calculated at checkout.
$456.00 $364.80
Sale

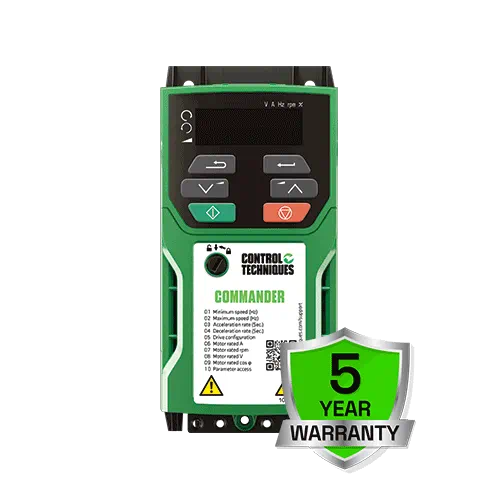

Control Techniques Commander C200 is an AC induction variable speed drive, compatible with a vast range of software to deliver optimum service. Due to its durability and efficiency, you are provided with an effortless performance. The Commander C200 is equipped with the latest energy-saving features as well as built-in PID and onboard PLC for increased control at a lower cost.

Model Number : C200-02200056
Power Rating : 1.1 kW, 1 1/2 HP
Output Current : 5.6 Amps
Supply Voltage : 200/240 VAC, single/three phase, +/- 10%
Frame Size : 2
Frame Dimensions : h.205mm x w.75mm x d.150mm
Manufacturer : Control Techniques
Ambient : -20-40 C
Overload : 150% for 60 seconds
IP Class : IP20
Analogue Inputs : 3
Digital Inputs : 5
Relay Outputs : 1
Remote Keypad Available : Yes
