Industrial Motors

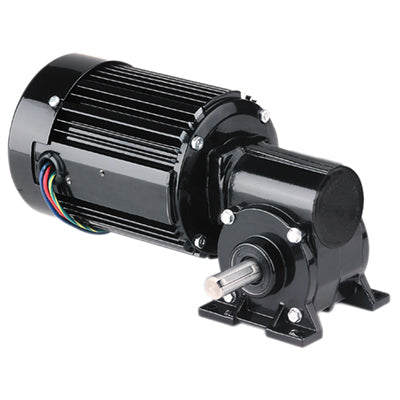

Bodine Electric 2273, 3/8 Hp, 170 Rpm, 10:1, 101 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2273, 3/8 Hp, 170 Rpm, 10:1, 101 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$817.11
$817.11
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2273, 3/8 Hp, 170 Rpm, 10:1, 101 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 170
Fixed Speed Torque (lb-in) 101
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Gear Ratio 10
Variable Speed (rpm) 18-229
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 66
SOA Torque At 60Hz 105
SOA Torque At Max Hz 101
Connection Diagram 07410007
Motor Type 42R6BFPP-5N
Length XH (inches) 10.75
Weight (lbs) 17.5
HPDecimal 0.375
