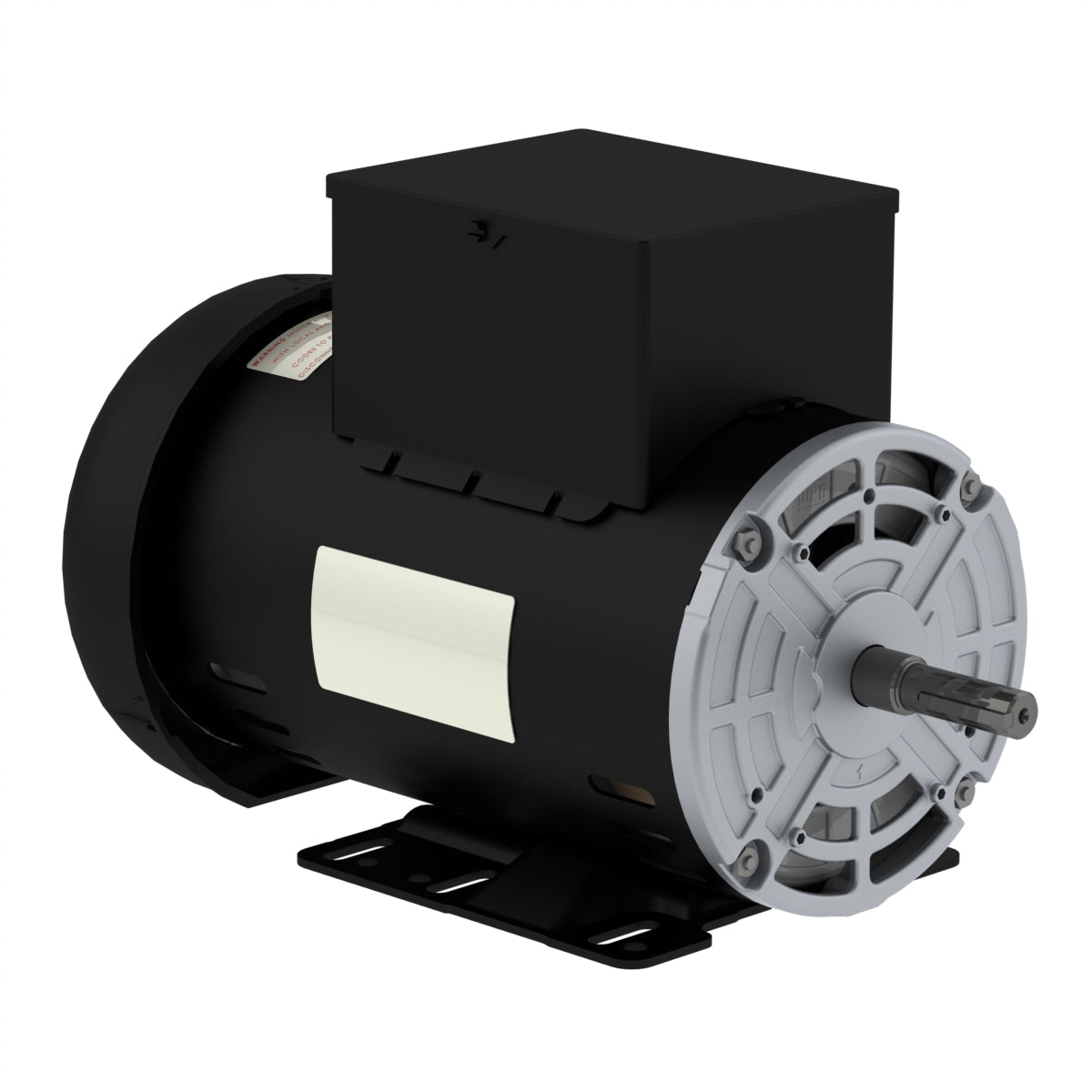

Weg Electric 00536OS1DCD56H-S, 5 Hp, 3600 Rpm, 56H Frame, 208-230 Vac, 1 PH, Foot-mounted, Rolled Steel Compressor Duty.

00536OS1DCD56H-S, 5 Hp, 3600 Rpm, 56H Frame, 208-230 Vac, 1 PH, Foot-mounted, Rolled Steel Compressor Duty.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top

Frame 56H
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3440 rpm
Slip 4.44 %
Rated voltage 230 V
Rated current 20.3 A
L. R. Amperes 122 A
LRC 6.0x(Code G)
No load current 4.70 A
Rated torque 7.63 ft.lb
Locked rotor torque 240 %
Breakdown torque 200 %
Locked rotor time 7s (cold) 4s (hot)
Moment of inertia (J) 0.0864 sq.ft.lb
Design L
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
