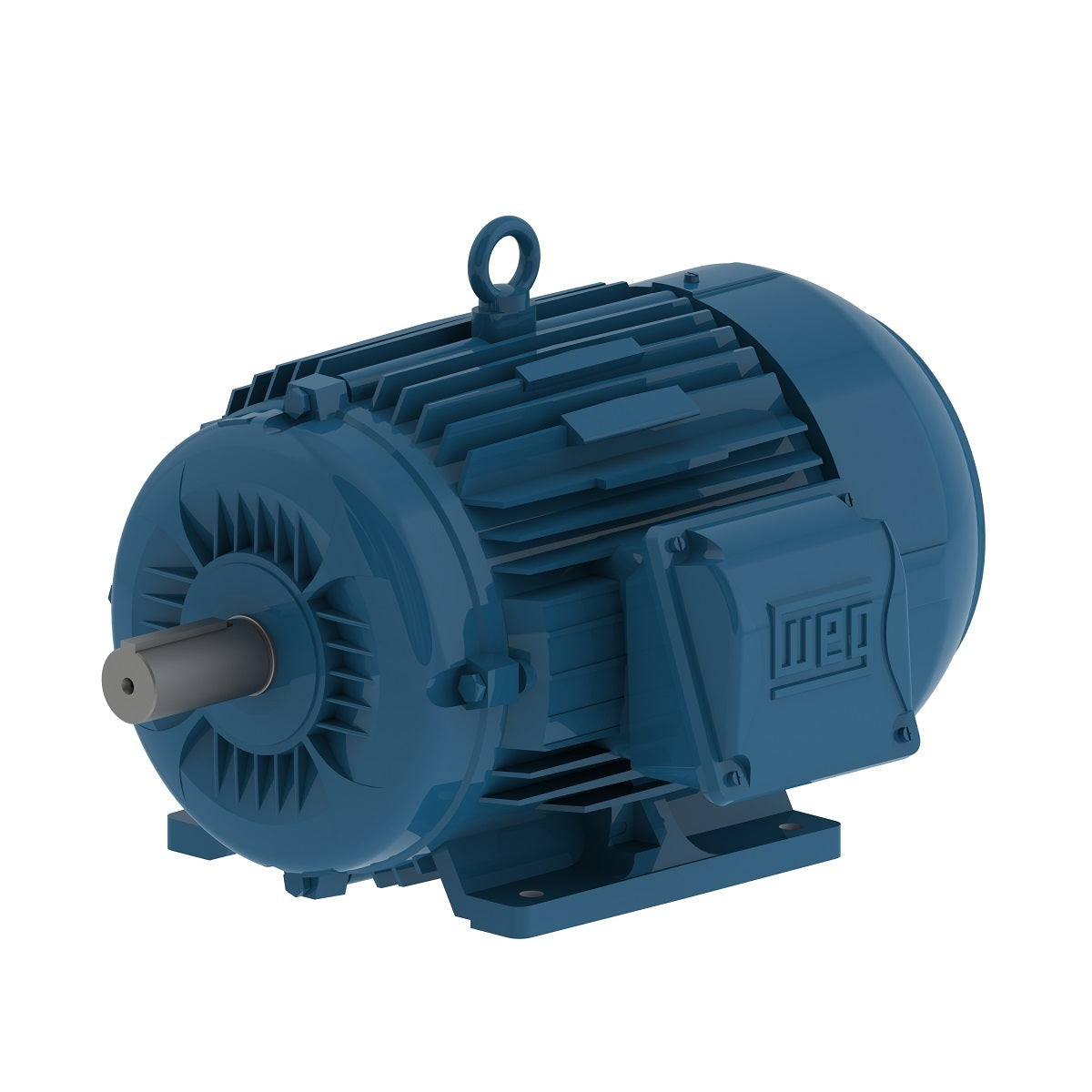

Weg Electric 00418ET3Y112M-W22, 5 1/2 Hp, 1800 Rpm, 112M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

00418ET3Y112M-W22, 5 1/2 Hp, 1800 Rpm, 112M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 7.28 A
L. R. Amperes 58.2 A
LRC 8.0
No load current 4.25 A
Rated torque 16.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
