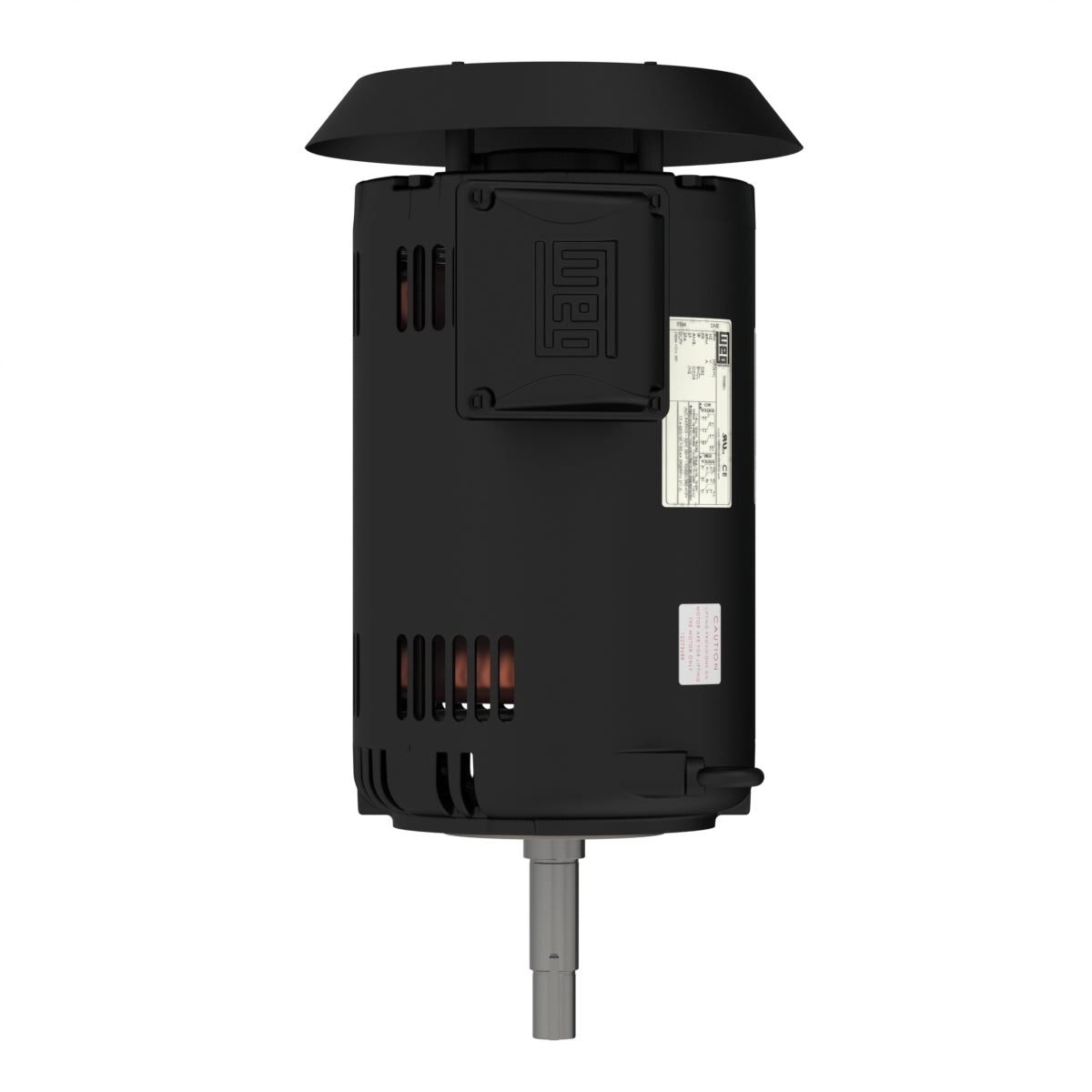

Weg Electric 00736OT3H184JMV-S, 7 1/2 Hp, /4Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

00736OT3H184JMV-S, 7 1/2 Hp, /4Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP
