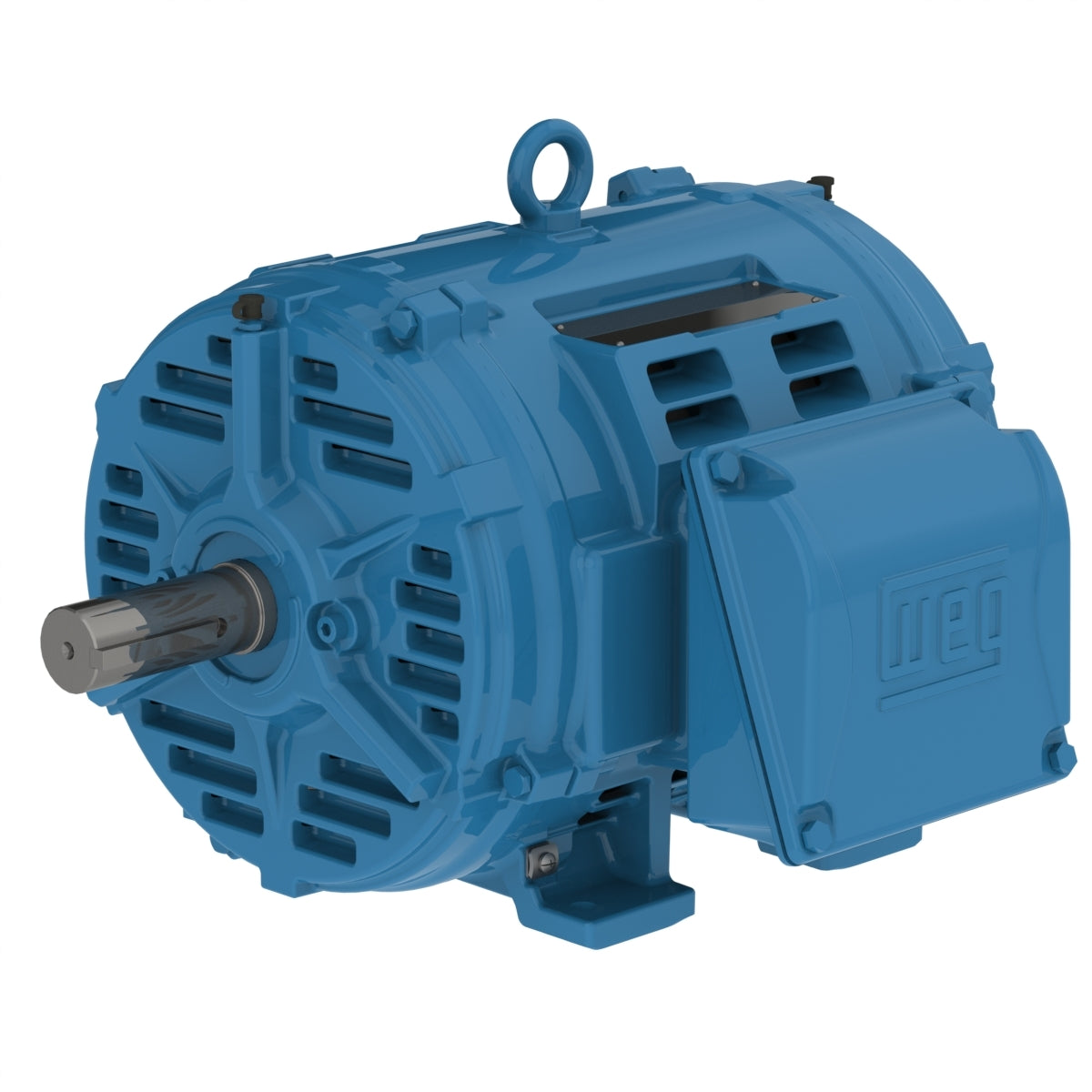

Weg Electric 03036OT3E284TSF2-W40, 30 Hp, 3600 Rpm, 284TS Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

03036OT3E284TSF2-W40, 30 Hp, 3600 Rpm, 284TS Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 284TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 70.0/35.0 A
L. R. Amperes 441/221 A
LRC 6.3x(Code G)
No load current 25.8/12.9 A
Rated torque 44.4 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
