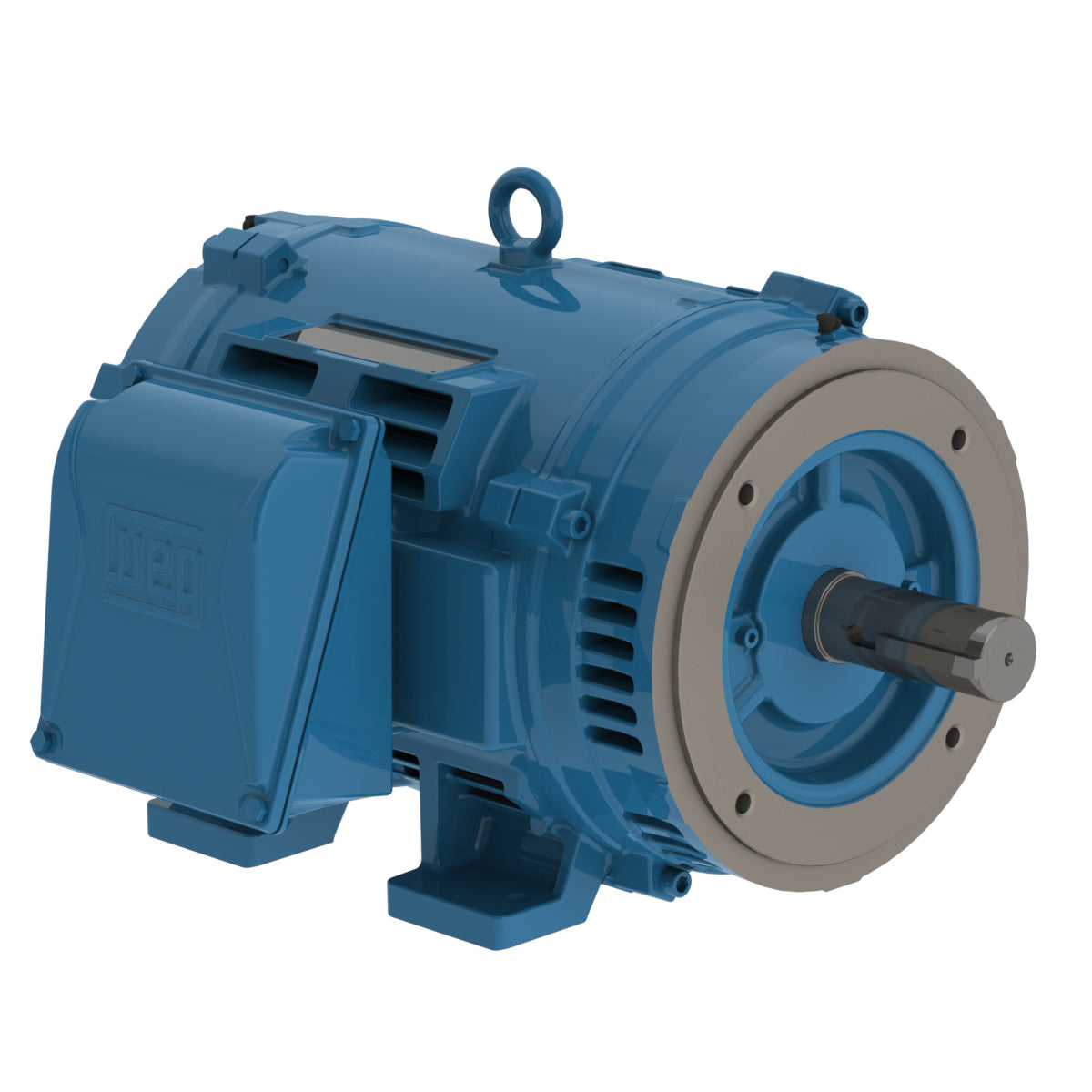

Weg Electric 04036OT3E286TSC-W40G, 40 Hp, 284/6TSC Frame, 3600 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

04036OT3E286TSC-W40G, 40 Hp, 284/6TSC Frame, 3600 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6TSC
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 230/460 V
Rated current 93.6/46.8 A
L. R. Amperes 608/304 A
LRC 6.5x(Code G)
No load current 29.8/14.9 A
Rated torque 59.3 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 2.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
