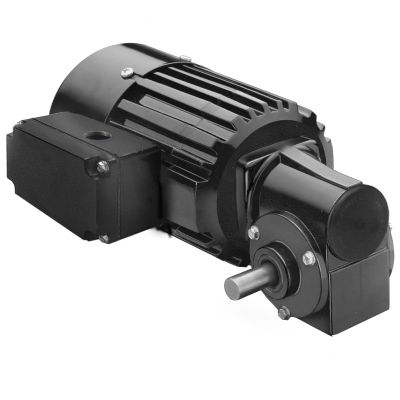

Bodine Electric 1487 1/15 Hp, 47 Rpm, 30:1 40 Lbs., Metric 34R4BFCI-3F AC Right Angle Gearmotor
SPECIFICATIONS
| Speed (rpm) | 47 |
| Rated Torque (Nm) | 3.8 |
| Rated Torque (lb-in) | 34 |
| Power (Watts) | 50 |
| Power (HP) | 1/15 |
| Volts | 230 |
| Hz | 50 |
| Phases | 1 |
| Amps | .50 |
| Gear Ratio | 30 |
| Radial Load (N) | 180 |
| Radial Load (lbs) | 40 |
| Length XH (mm) | 221 |
| Length XH (inch) | 8.69 |
| Weight (kg) | 4.5 |
| Weight (lbs) | 10.1 |
| Connection Diagram | 07410021 |
| Capacitor Part Number | 49401068 |
| Product Type | 34R4BFCI-3F |
| HPDecimal | 0.0667 |
