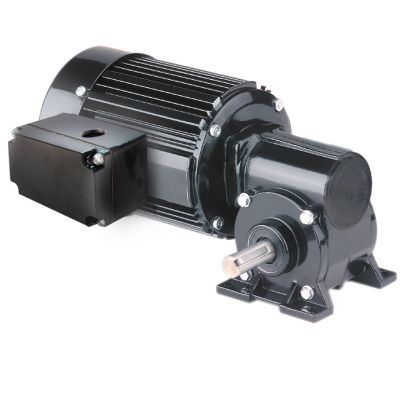

Bodine Electric 1627 1/9 Hp, 35 Rpm, 40:1 80 Lbs., Metric 42R4BFCI-5F AC Right Angle Gearmotor
SPECIFICATIONS
| Speed (rpm) | 35 |
| Rated Torque (Nm) | 10.5 |
| Rated Torque (lb-in) | 93 |
| Power (Watts) | 83 |
| Power (HP) | 1/9 |
| Volts | 230 |
| Hz | 50 |
| Phases | 1 |
| Amps | .63 |
| Gear Ratio | 40 |
| Radial Load (N) | 335 |
| Radial Load (lbs) | 80 |
| Length XH (mm) | 246 |
| Length XH (inch) | 9.69 |
| Weight (kg) | 6.4 |
| Weight (lbs) | 14.3 |
| Connection Diagram | 07410021 |
| Capacitor Part Number | 49401154 |
| Product Type | 42R4BFCI-5F |
| HPDecimal | 0.1111 |
