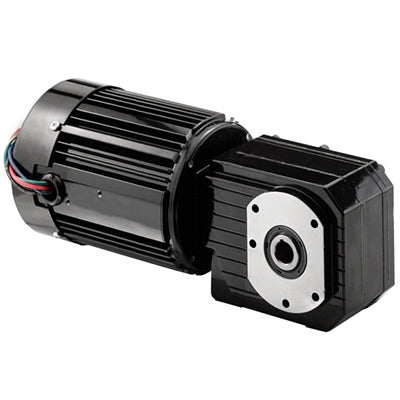

Bodine Electric, 2637, 42R6BFPP-GB/H, 3/8 HP, 14 RPM, 290 Lb-in, 120:1, 230/460 Vac, 3 PH, Hollow Shaft, Inverter Duty AC Gearmotor

Bodine Electric, 2637, 42R6BFPP-GB/H, 3/8 HP, 14 RPM, 290 Lb-in, 120:1, 230/460 Vac, 3 PH, Hollow Shaft, Inverter Duty AC Gearmotor

$1,057.72
$1,057.72
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2637, 42R6BFPP-GB/H, 3/8 HP, 14 RPM, 290 Lb-in, 120:1, 230/460 Vac, 3 PH, Hollow Shaft, Inverter Duty AC Gearmotor

SPECIFICATIONS

Speed (rpm) 14
Fixed Speed Torque (lb-in) 290
Motor Output Power (hp) 3/8
Voltage (AC) 230/460
Current (amps) 1.90/0.95
Rated Frequency (Hz) 60
Gear Ratio 120
Variable Speed (rpm) 1.5-19
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 290
SOA Torque At 60Hz 290
SOA Torque At Max Hz 290
Length XH (inches) 12.1
Weight (lbs) 19.5
Connection Diagram 07410883
Motor Type 42R6BFPP-GB/H
HPDecimal 0.375
