Industrial Motors

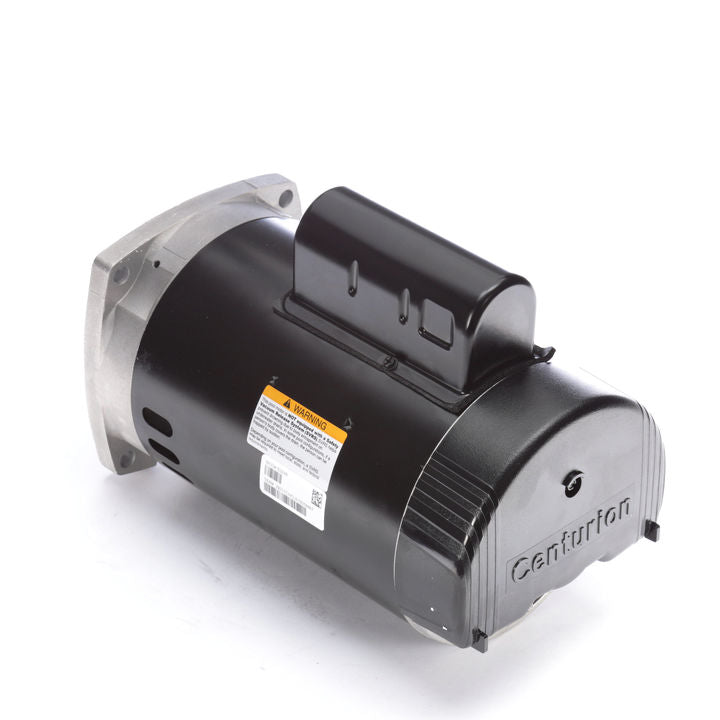

Century B2848V1, 1 Hp, 3600 Rpm, 56Y FR, 115/230, 1 PH, Dripproof, Square Flange, Permanent Split Capacitor, Switchless, Full Rated, Pool and Spa Motor

Century B2848V1, 1 Hp, 3600 Rpm, 56Y FR, 115/230, 1 PH, Dripproof, Square Flange, Permanent Split Capacitor, Switchless, Full Rated, Pool and Spa Motor

$461.00
$461.00
Sale Sold out
Shipping calculated at checkout.

B2848, 1 Hp, 3600 Rpm, 56Y FR, 115/230, 1 PH, Dripproof, Square Flange, Permanent Split Capacitor, Switchless, Full Rated, Pool and Spa Motor.

Engineering Data

Stock Number
B2848V1

Horse Power
1.0

Amps
SF 8.0/16.0

Frequency
60

RPM
3450

Voltage
230/115

Motor Type
CX

Frame Size
Y56Y

Nema Suffix
Y

Mounting Type
ROUND FRAME

Service Factory
1.65

Phase
1

Enclosure
DP

Bearings
BALL BRG

Ambient Temperature
50

Insulation Class
F

Rotation
CCWPE

Protector
THERMALLY PROTECTED

Duty Cycle
CONT

Agency Approvals
ULCSA
