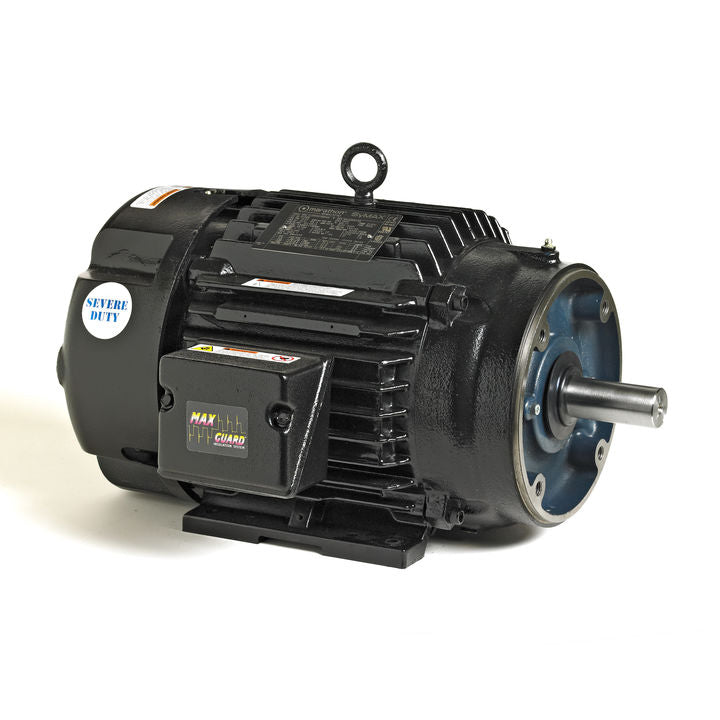

Marathon Electric SY007A, 5 Hp,1800 Rpm, 184TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV, 184TPNSB10236.

SY007A, 5 Hp,1800 Rpm, 184TC FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV, 184TPNSB10236.

Engineering Data

Output HP : 5 HP
Output KW : 3.7 kW
Frequency : 90 Hz
Voltage : 230/460 V
Current : 11.6/5.8 A
Speed : 1800 RPM
Service Factor : 1
Phase : 3
Efficiency : 94.9 %
Duty : Continuous
Insulation Class : H
Design Code : No Design
Code KVA Code : NO KVA CODE
Frame : 184TC
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6207
UL : Recognized
CSA : N CE : N IP Code : 54
Technical Specifications
Electrical Type : AC Permament Magnet
Starting Method : Inverter Only
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 17.50 in
Frame Length : 8.00 in
Shaft Diameter : 1 1 in
Shaft Extension : 2.62 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856060020
Weight : 140.00 LB
