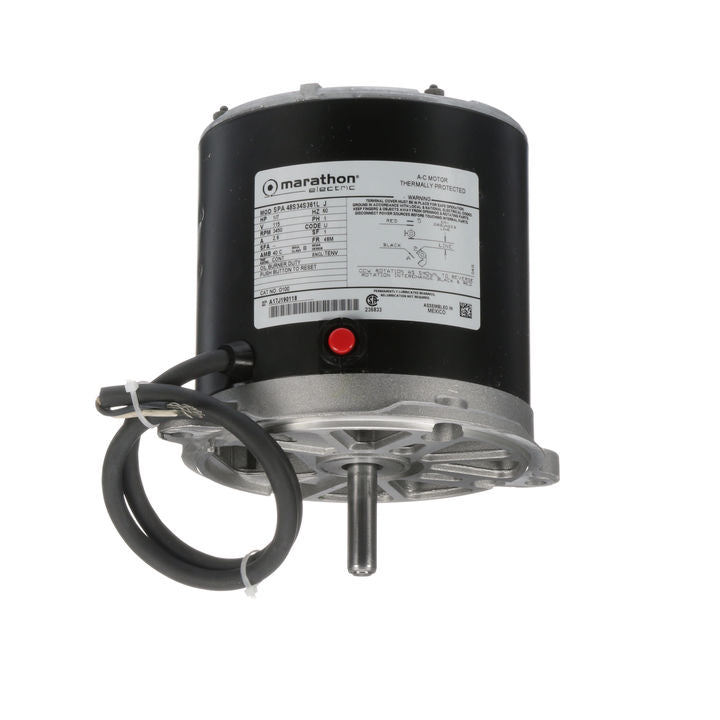

Marathon Electric O100, 1/7 HP, 3450 Rpm, 48M FR, 115 Vac, Split PH, And Capacitor Start, NEMA Flange Mount, Oil Burner, Manual Over Load, 48S34S361

O100, 1/7 HP, 3450 Rpm, 48M FR, 115 Vac, Split PH, And Capacitor Start, NEMA Flange Mount, Oil Burner, Manual Over Load, 48S34S361

Engineering Data

Output HP : 0.14 HP
Output KW : 0.11 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 2.3 A
Speed : 3450 RPM
Service Factor : 1
Phase : 1
Efficiency : 46.5 %
Duty : Continuous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : V
Frame : 48MZ
Enclosure : Semi Enclosed
Overload Protector : Manual
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N IP Code : 10
Technical Specifications
Electrical Type : Split Phase
Starting Method : Across The Line
Poles : 2
Rotation : Selective Clockwise
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 7.70 in
Shaft Diameter : 0.500 in
Shaft Extension : 1.84 in
Assembly/Box Mounting : F1 ONLY
