Industrial Motors

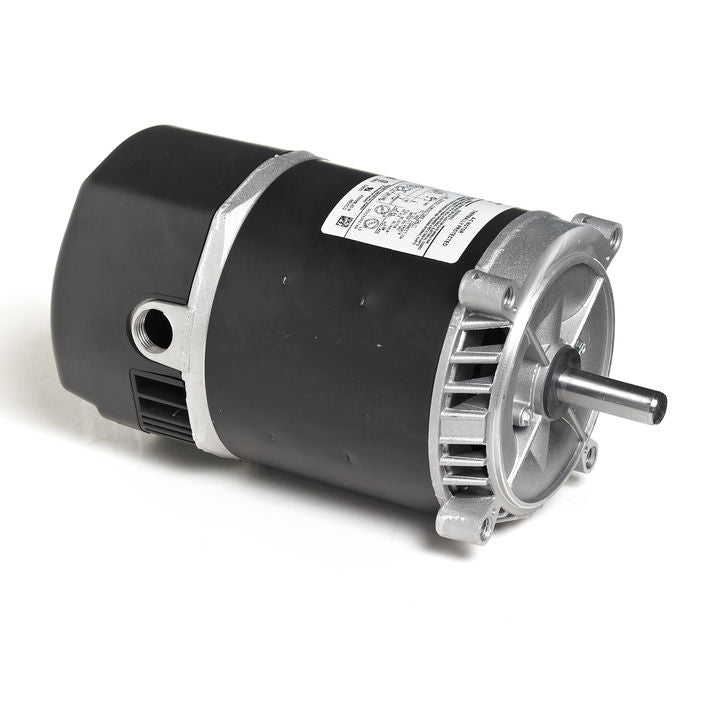

Marathon Electric C1081, 1/3 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC39EN2553X

Marathon Electric C1081, 1/3 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC39EN2553X

$537.00
$537.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

C1081, 1/3 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC39EN2553X

Engineering Data

Output HP:1/3 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:115/230 V
Current:6.2,3.1 A
Speed:3450 rpm
Service Factor:1.75
Phase:1
Efficiency:57.9 %
Power Factor:0
Duty:Continuous
Insulation Class:B
KVA Code:LFrame:56C
Enclosure:Drip Proof
Thermal Protection:AUTO
Ambient Temperature:50 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:YesCE:N
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:SM
Poles:2
Rotation:Clockwise
Mounting:Round
Motor Orientation:ANY
Drive End Bearing:LOCKED
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:11.03 in
Frame Length:4.43 in
Shaft Diameter:0.63 in
Shaft Extension:1.88 in

View full details

Attachments
