Industrial Motors

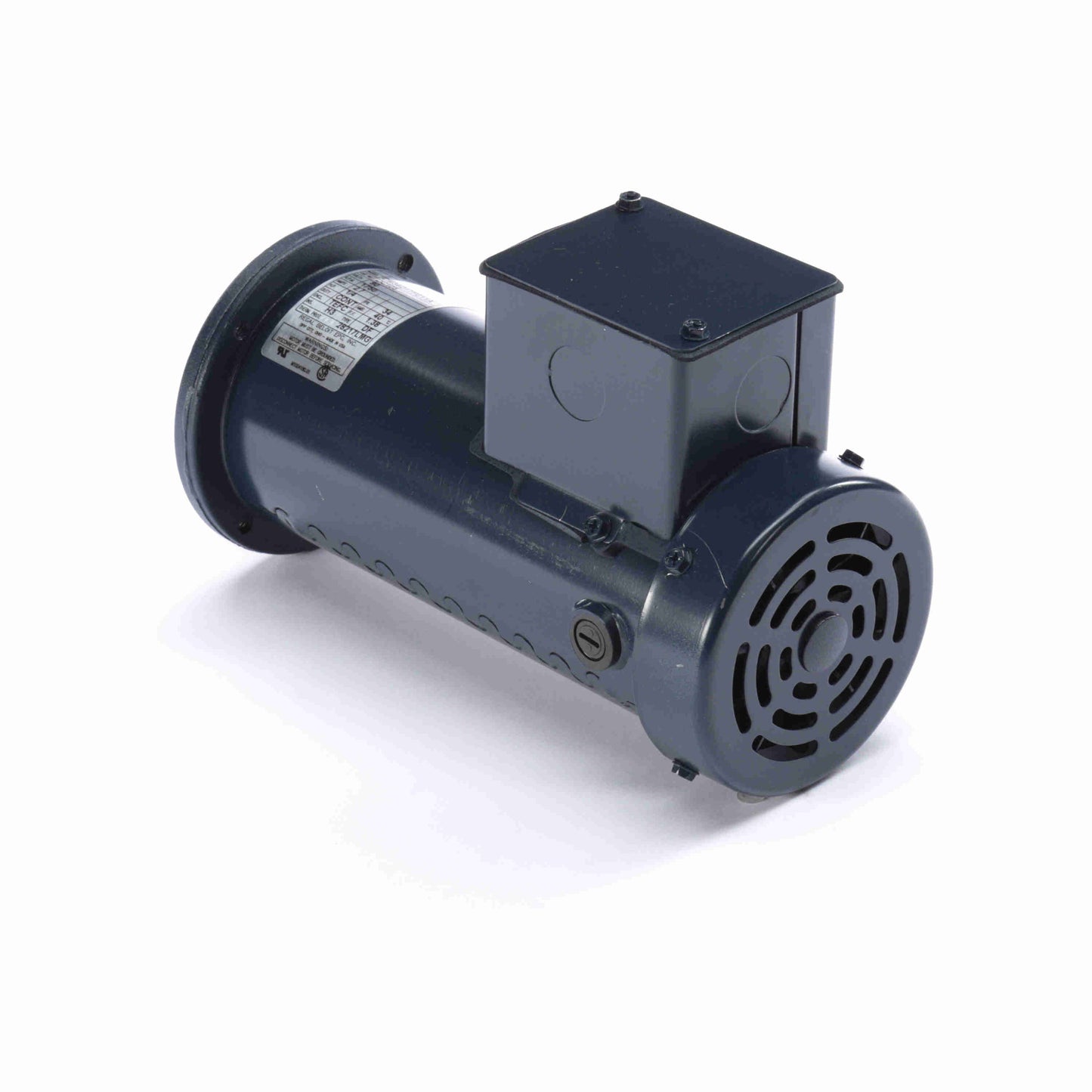

Century Electric DC135, 1 1/2 Hp, 1800 Rpm, 145TC FR, 180 Vac, TEFC, SCR Motor.

Century Electric DC135, 1 1/2 Hp, 1800 Rpm, 145TC FR, 180 Vac, TEFC, SCR Motor.

$3,399.00
$3,399.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

DC135, 1 1/2 Hp, 1800 Rpm, 145TC FR, 180 Vac, TEFC, SCR Motor.

General Specifications

Output HP:1.5 Hp
Output KW:1.1 kW
Voltage:180 V
Current:7.5 A
Speed:1750 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:145TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:None
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Round
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:18.34 in
Frame Length:13.63 in
Shaft Diameter:0.875 in
Shaft Extension:2.06 in
