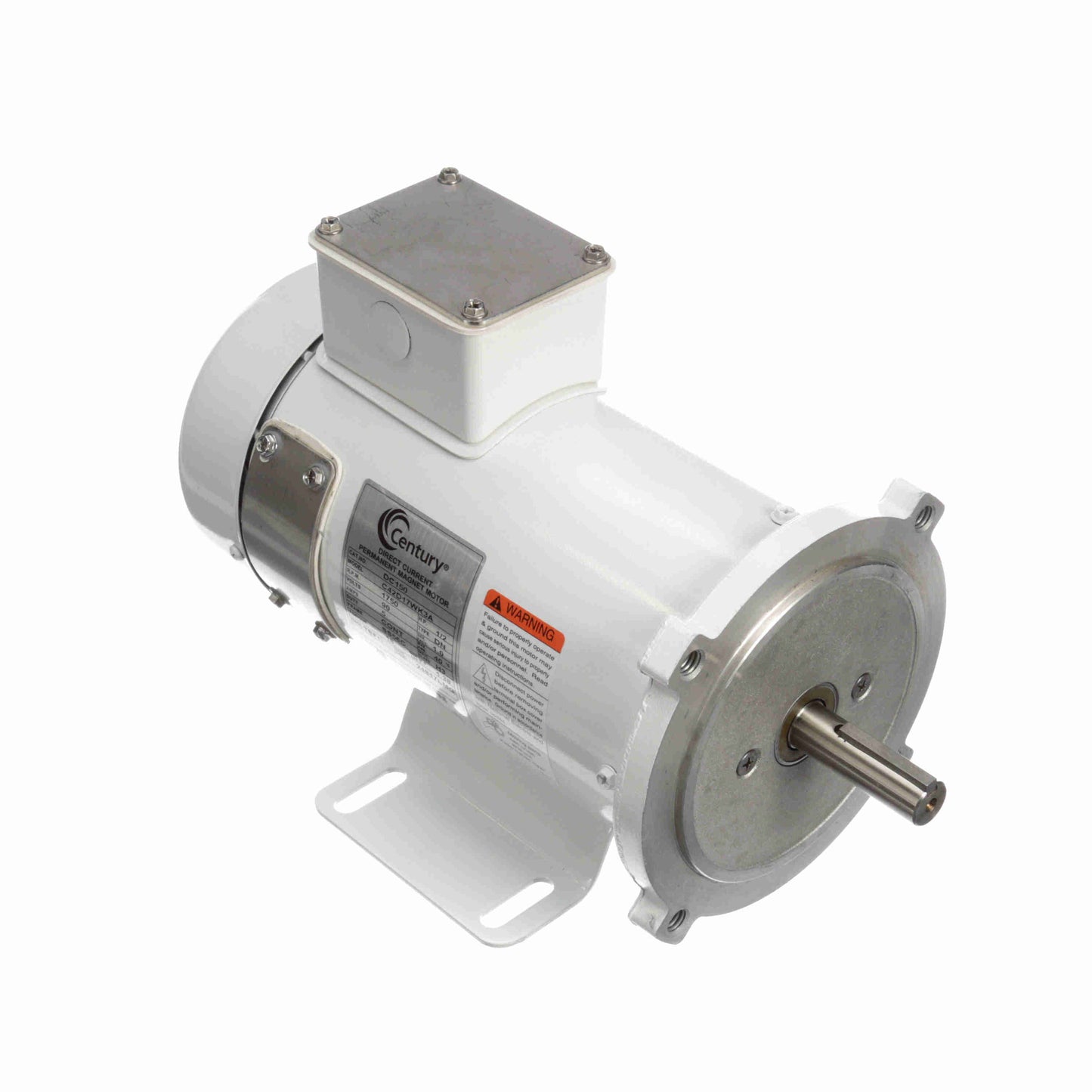

Century Electric DC150, 3/4 Hp, 1800 Rpm, S56C FR, 90 Vac, TEFC, Rigid Base, SCR Motor.

Century Electric DC150, 3/4 Hp, 1800 Rpm, S56C FR, 90 Vac, TEFC, Rigid Base, SCR Motor.

$1,582.00
$1,582.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

DC150, 3/4 Hp, 1800 Rpm, S56C FR, 90 Vac, TEFC, Rigid Base, SCR Motor.

General Specifications

Output HP:3/4 Hp
Output KW:0.56 kW
Voltage:90 V
Current:7.6 A
Speed:1750 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:S56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Rigid Base
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:13.81 in
Frame Length:9.50 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
