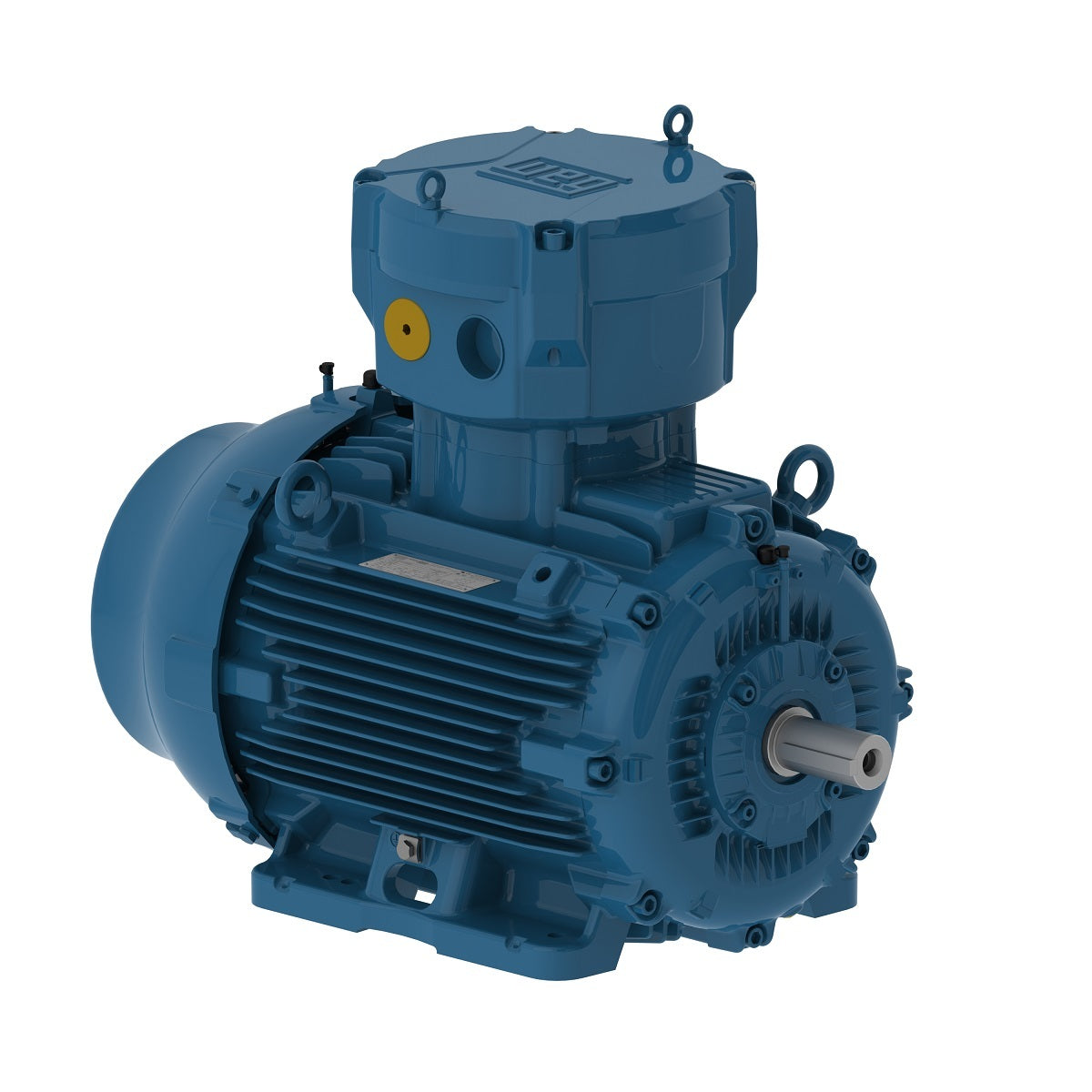

Weg Electric E05536XP3YAX250SMF3W, 75 Hp, 250S/M Frame, 3000 RPM, 380-400-415/660-690//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E05536XP3YAX250SMF3W, 75 Hp, 250S/M Frame, 3000 RPM, 380-400-415/660-690//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2

Engineering Data

The W22Xdb line is an evolution in the market of classified area products offering high efficiency levels, energy saving, low operational costs, extended lifetime, low maintenance and assured safety.

Product features
Standard IEC 60034-1
Frequency 50 Hz
Voltage 380-400-415/660-690//460 V
Number of poles 2
Degree of Protection IP56
Synchronous speed 3000 rpm
Output rating 55 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 250S/M
Output 55 kW (75 HP)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400/690 V
Rated current 95.0/55.1 A
L. R. Amperes 722/419 A
LRC 7.6
No load current 26.7/15.5 A
Rated torque 131 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 8.86 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
