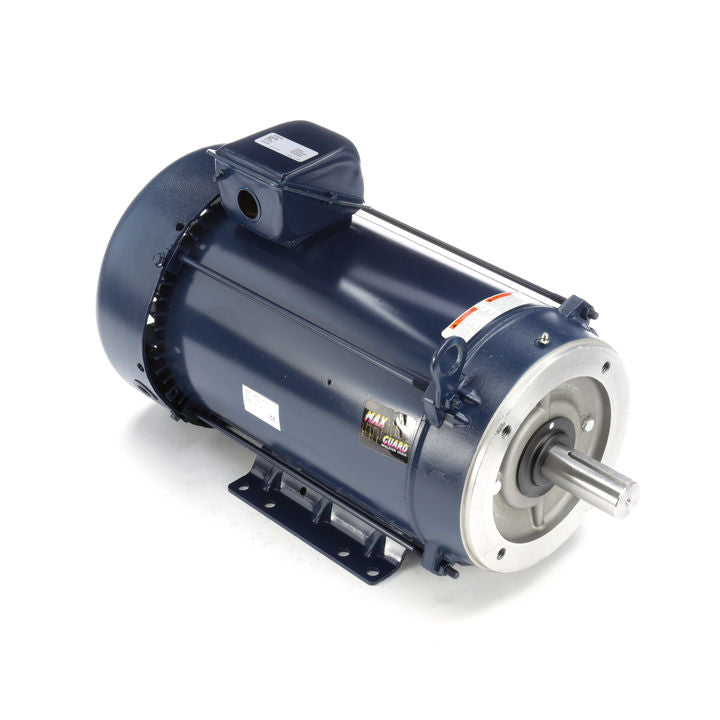

Marathon Electric E2018A, 215TTFWD6001, 10 HP, 3600 RPM, 215TC FR, 230/460 V, 3 PH, Rigid Base, General Purpose

E2018A, 215TTFWD6001, 10 HP, 3600 RPM, 215TC FR, 230/460 V, 3 PH, Rigid Base, General Purpose

General Specifications

Model : 215TTFWD6001
Catalog No : E2018A
Part Description : 10,3600,TEFC,215TC,3/60/230/460
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes

Nameplate Specifications

Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 23.6/11.8 A
Speed : 3535 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B KVA
Code : H
Frame : 215TC
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 22.22 in
Frame Length : 12.4 in
Shaft Diameter : 1.38 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F3
UPC : 722856018410
