Industrial Motors

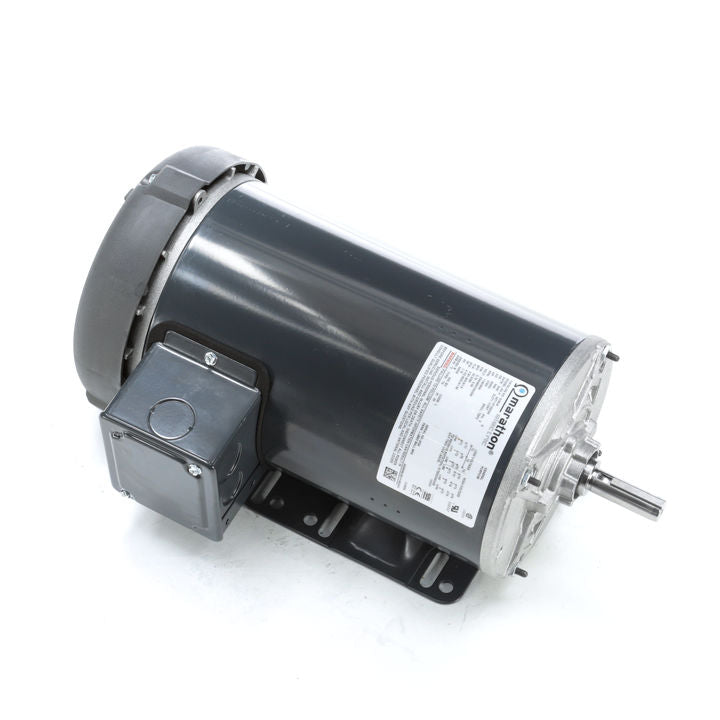

Marathon Electric K165, 1 Hp, 1200 Rpm, 56H FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency.

Marathon Electric K165, 1 Hp, 1200 Rpm, 56H FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency.

$408.00
$408.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

** This motor has been replaced by Model# G360A**
K165, 1 Hp, 1200 Rpm, 56H FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Standard Efficiency.

Engineering Data

60 Hertz
HP 1 Voltage 230/460
kW N/A FL Amps 3.6/1.8
RPM 1140
FL Eff 0 % SF 1.25


Phase 3 Insulation Class B
Frame 56H Duty Continuous
Enclosure TEFC Ambient 40
Mounting WB NEMA Design B
Orientation Horizontal or Vertical Starting Type Squirrel Cage Induction
Assembly N/A KVA Code J
Drive End Bearing BALL IP Code
Opposite End Bearing BALL
Drive End Bearing Size 17MM
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 37 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
