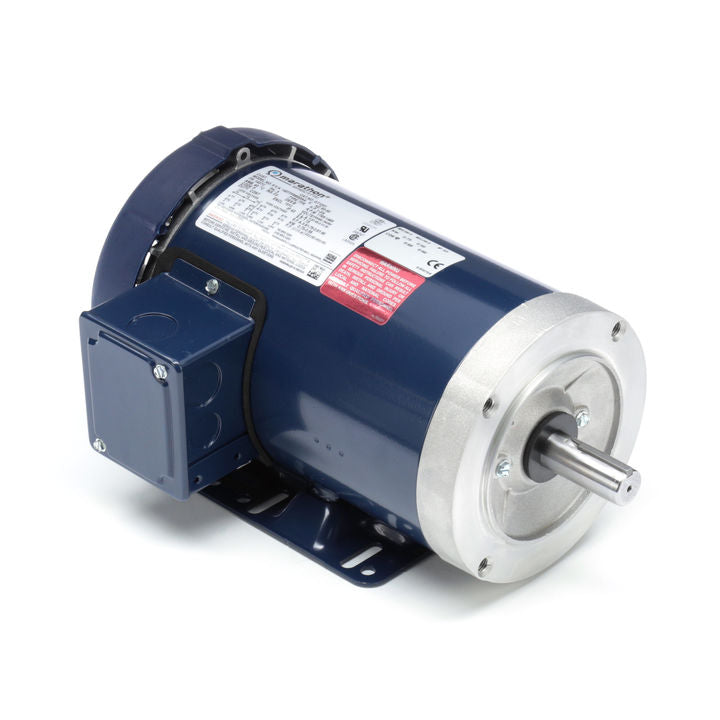

Marathon Electric K705, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T17F5336.

K705, 1/2 Hp, 1800 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 56T17F5336.

Engineering Data

Output HP : 0.50 HP
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 0.95 A
Speed : 1725 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 72.1 %
Duty : Continous
Insulation Class : F
Design Code : B
KVA Code : M
Frame : 56C
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 11.81 in
Frame Length : 6.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
UPC : 722856015822
Weight : 23.00 LB
