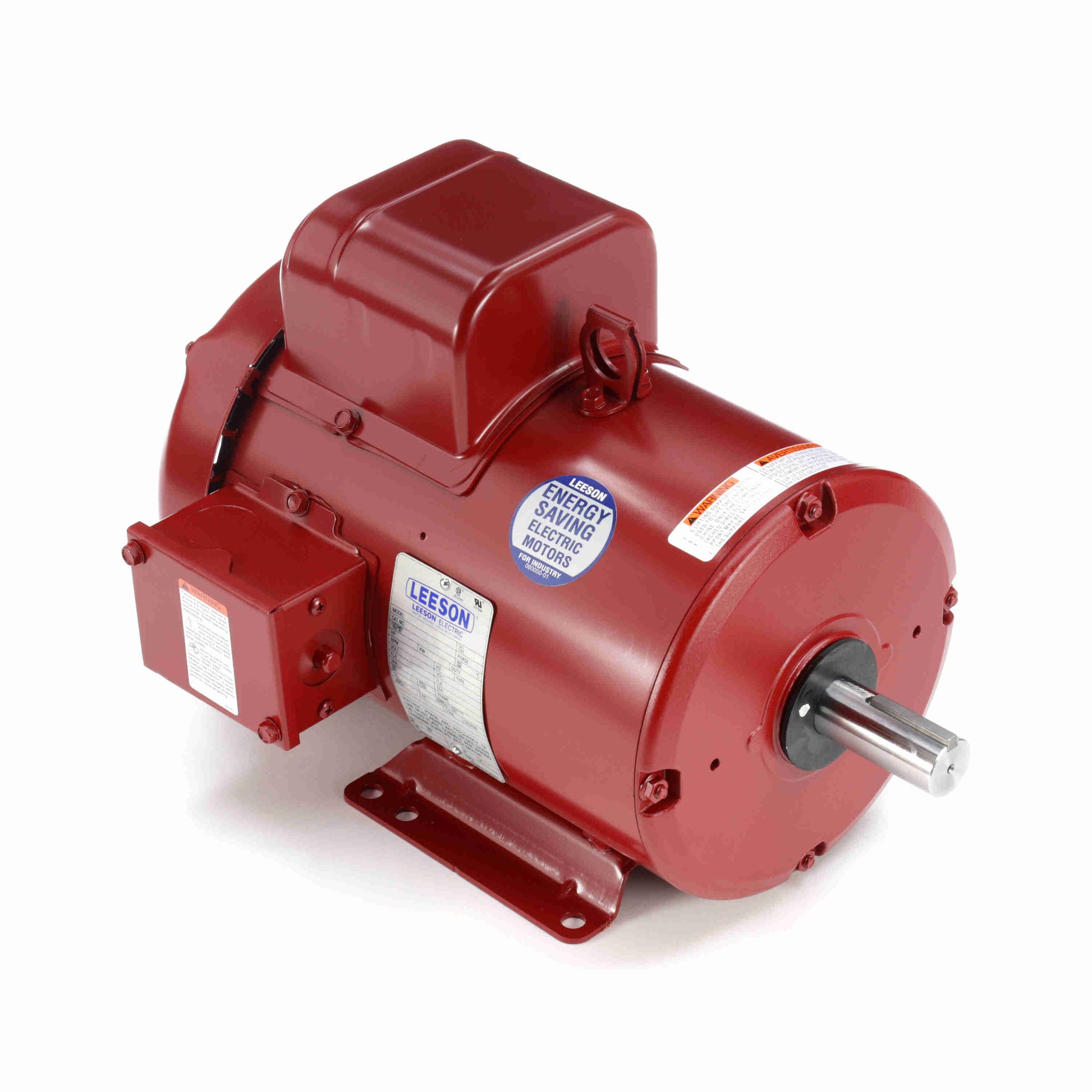

Leeson Electric 131543.00, 5 HP, 1800 RPM, 184T FR, TEFC, 230 Vac, 1 PH, Rigid Base, General Purpose, Agriculture Motor,

131543.00, 5 HP, 1800 RPM, 184T FR, TEFC, 230 Vac, 1 PH, Rigid Base, General Purpose, Agriculture Motor,

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230 V
Current:20.5 A
Speed:1740 rpm
Service Factor:1.15
Phase:1
Efficiency:82.5 %
Power Factor:93
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:H
Frame:184T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:.47 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:17.46 in
Frame Length:12.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1 ONLY
