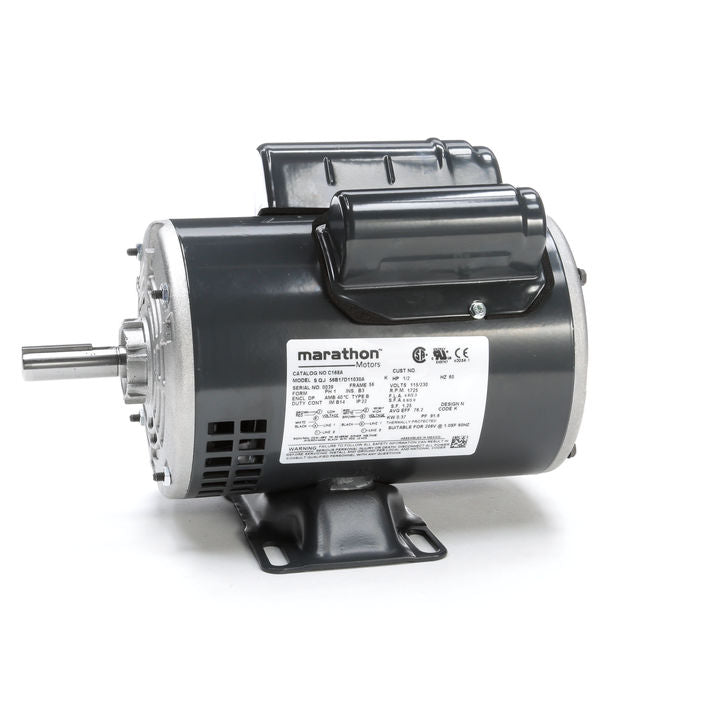

Marathon Electric C168A, 1/2 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Auto Overload, 56B17D11030.

C168A, 1/2 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Auto Overload, 56B17D11030.

Engineering Data

Output HP : 0.50 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 4.6/2.3 A
peed : 1725 rpm
Service Factor : 1.25
Phase : 1
Efficiency : 76.2 %
Duty : Continuous Insulation
Class : B
Design Code : N
KVA Code : K
Frame : 56
Enclosure : Drip Proof
Overload Protector : Automatic Ambient
Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP
Code : 22
Technical Specifications
Electrical Type : Capacitor Start Capacitor Run
Starting Method : Across The Line
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor
Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 11.47 in
Frame Length : 7.50 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.97 in
Assembly/Box Mounting : F1 ONLY
