Industrial Motors

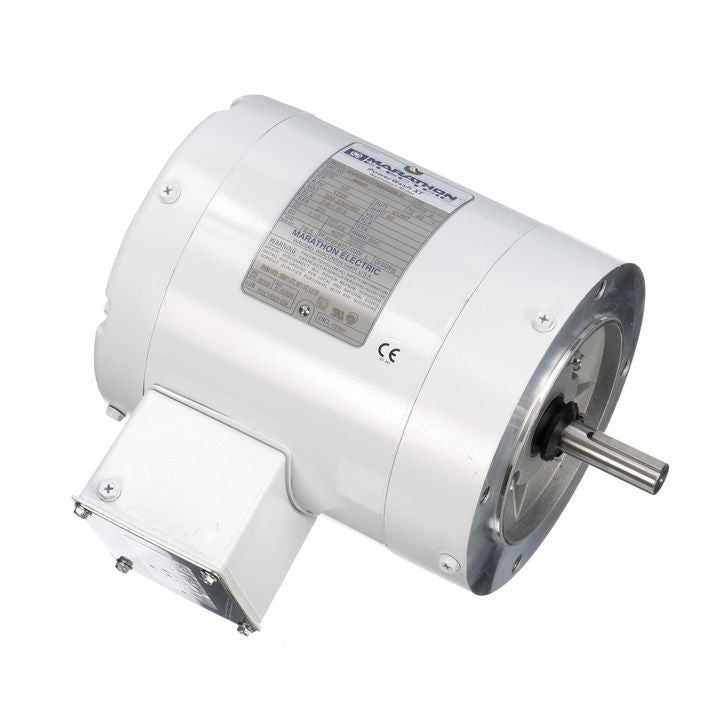

Marathon Electric N642, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 56T17V5328

Marathon Electric N642, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 56T17V5328

$1,168.00
$1,168.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

**This motor is no longer available & has been replaced by Leeson Model# 113473**
N642, 1/2 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 56T17V5328.

Engineering Data

60 Hertz
HP 1/2 Voltage 208-230/460
kW 0.37 FL Amps 2.0-1.8/.9
RPM 1800
FL Eff 78.5 % SF 1.15


Phase 3 Insulation Class F
Frame 56C Duty CONTINUOUS
Enclosure TENV Ambient 40
Mounting C FACE NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 55
Opposite End Bearing BALL
Drive End Bearing Size 6205
Opposite End Bearing Size 6203
Weight 25 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection
