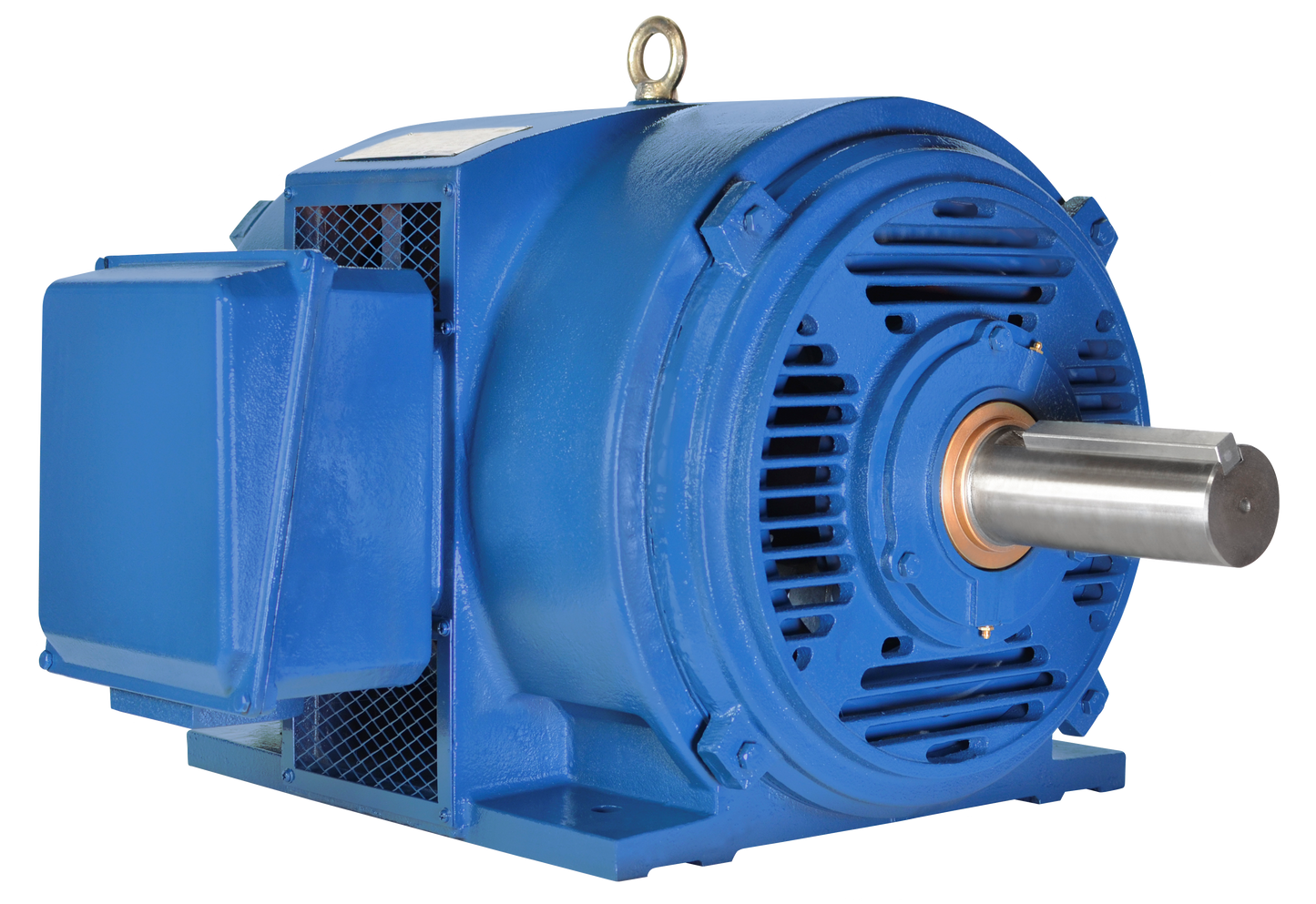

North American Electric PE364TS-75-2-ODP, 75 HP, 3600 RPM, 364TS Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

PE364TS-75-2-ODP, 75 HP, 3600 RPM, 364TS Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

Engineering Data

HP 75
RPM 3600
Frame 364TS
Mult. Sym. M3
Volts 208-230/460
Enclosure ODP
F.L. Eff. 93.6
Notes 1,2,3,4
"C" Dim. 27.17
F.L. Amps 83

Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
Rolled Steel Frame on 215T frame and below
Corrosion resistant paint
Suitable for wye-delta start on 213T frame and above
40° C ambient continuous duty
Dual voltage ratings 254T and above are suitable for part wind start on lower voltage
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible from 254T – 365T and 444T – 449T
1.25 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
Feet are dual drilled on most frames for mounting flexibility
Suitable for 575V @ 1.1 Service Factor
Inverter Duty (20:1 variable torque; 10:1 constant torque)
Cast iron frame construction on 254T frame and above
Vacuum Pressure Impregnation for all windings
Lifting provisions on 182T frame and above
Sealed bearings thru 215T frame
IP23 Protection
Greasable bearings with slinger on 254T frame and above
CSA + C + US Certification
Class F insulation system, class B rise at full load
ISO 9001 Certification
Notes

NEMA Premium® (NEMA MG-1 Table 12-12)
Inverter Duty (20:1 Variable Torque; 10:1 Constant Torque)
12 Lead Partwind Start at 230V
12 Lead Partwind Start at 460V
Ball Bearing on Drive End
Insulated Bearing on Opposite Drive End
Equipped with terminal blocks as standard
Inverter Rated (10:1 Variable Torque; 5:1 Constant Torque)
