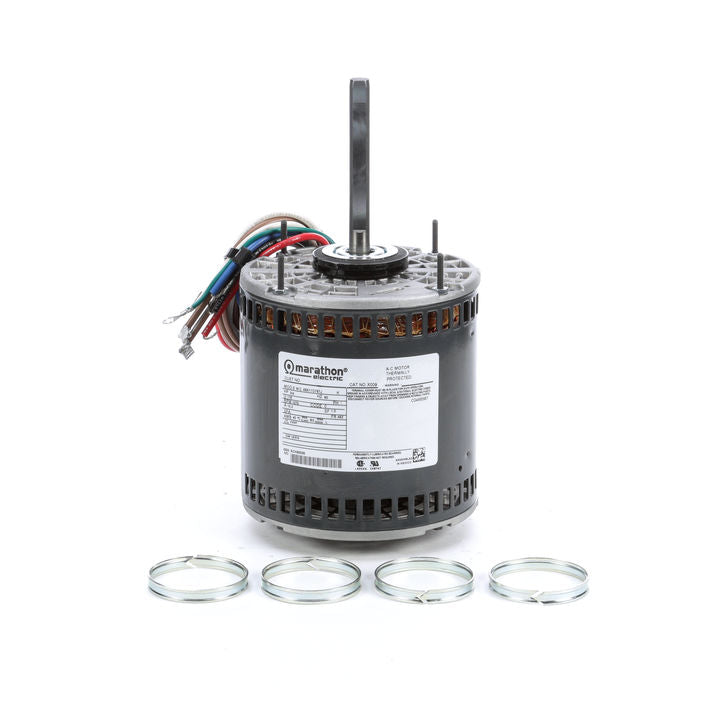

Marathon Electric X009, 3/4 Hp, 1075/3 Rpm, 48Y FR, 115 Vac, 1 PH, OPAO Resilient Ring, Extended Stud, 48A11O787.

Marathon Electric X009, 3/4 Hp, 1075/3 Rpm, 48Y FR, 115 Vac, 1 PH, OPAO Resilient Ring, Extended Stud, 48A11O787.

$503.00
$503.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

X009, 3/4 Hp, 1075/3 Rpm, 48Y FR, 115 Vac, 1 PH, OPAO Resilient Ring, Extended Stud, 48A11O787.

Engineering Data

60 Hertz
HP 3/4
Voltage 115
kW 0.56
FL Amps 10.2
RPM 1075
FL Eff 0 % SF NONE

Phase 1
Insulation Class B
Frame 48Y
Duty CONTINUOUSAOM
Enclosure OPAO
Ambient 40
Mounting Resilient Rings - Extended Studs
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 3 SPEED
Assembly F1 ONLY KVA Code C
Drive End Bearing BALL IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 20 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
