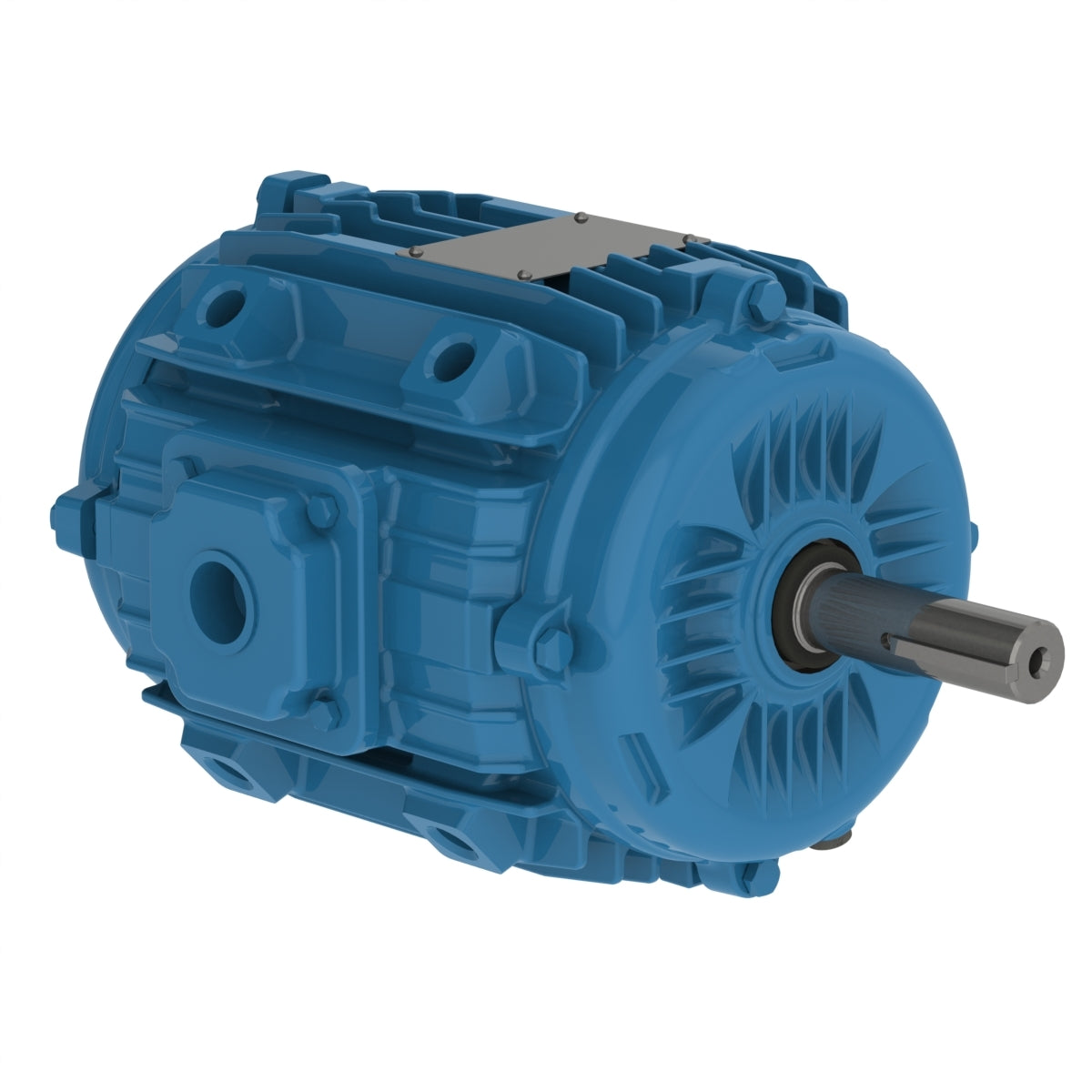

Weg Electric 00118ET3EPM143/5Y-W2, 1 Hp, 1800 Rpm, 145YZ FR, 208-230/460 Vac, 3 PH, TEAO, Pad mounted, General Purpose Motor.

00118ET3EPM143/5Y-W2, 1 Hp, 1800 Rpm, 145YZ FR, 208-230/460 Vac, 3 PH, TEAO, Pad mounted, General Purpose Motor.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 145YZ
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 3.25-2.94/1.47 A
L. R. Amperes 27.3-24.7/12.3 A
LRC 8.4x(Code L)
No load current 0.000-1.88/0.940 A
Rated torque 2.98 ft.lb
Locked rotor torque 320 %
Breakdown torque 350 %
Locked rotor time 32s (cold) 18s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
