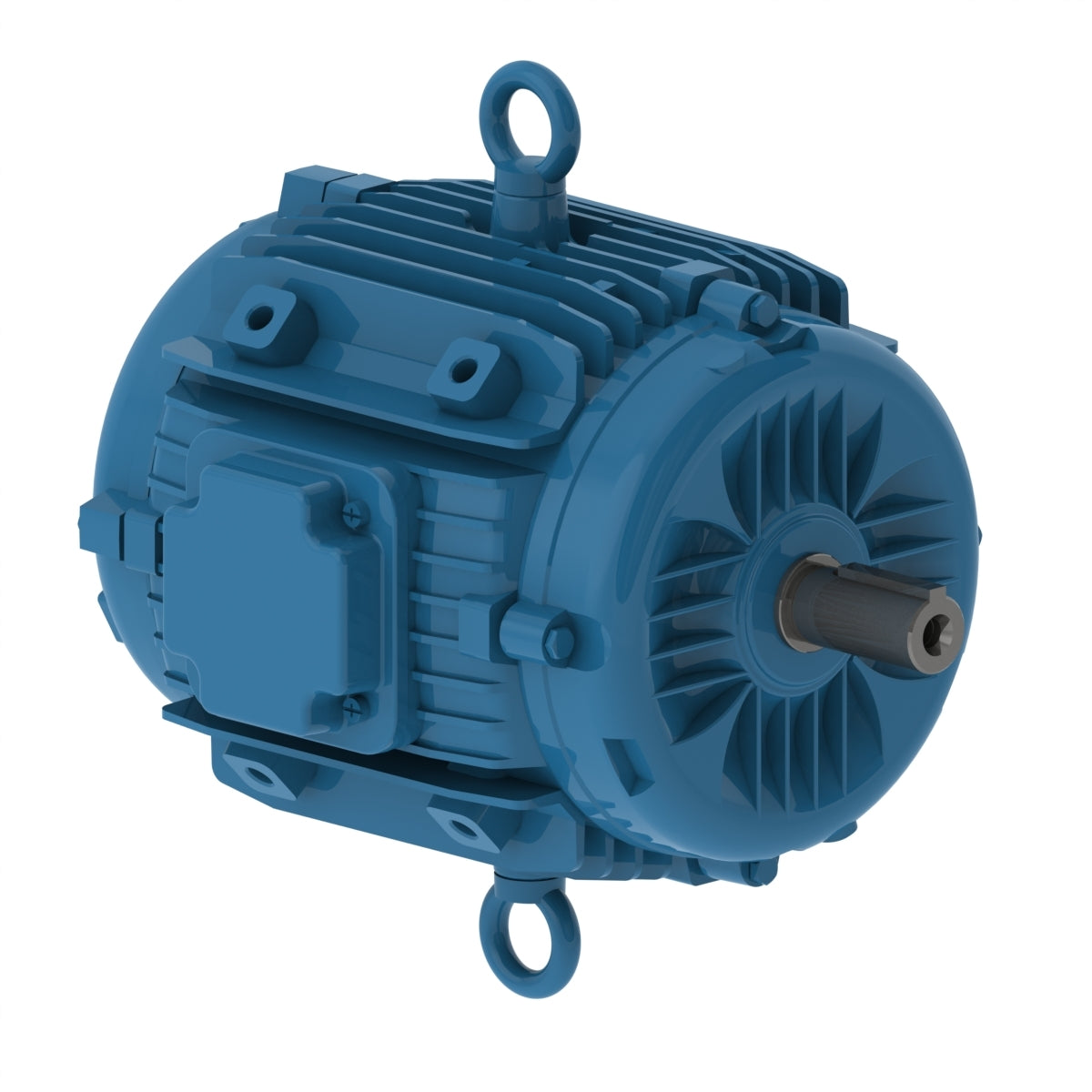

Weg Electric 00152ET3EPM182/4Y-W2, 1 1/2 Hp,1200 Rpm, 184YZ FR, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, NEMA Premium Efficiency.

00152ET3EPM182/4Y-W2, 1 1/2 Hp,1200 Rpm, 184YZ FR, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1.5 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO
