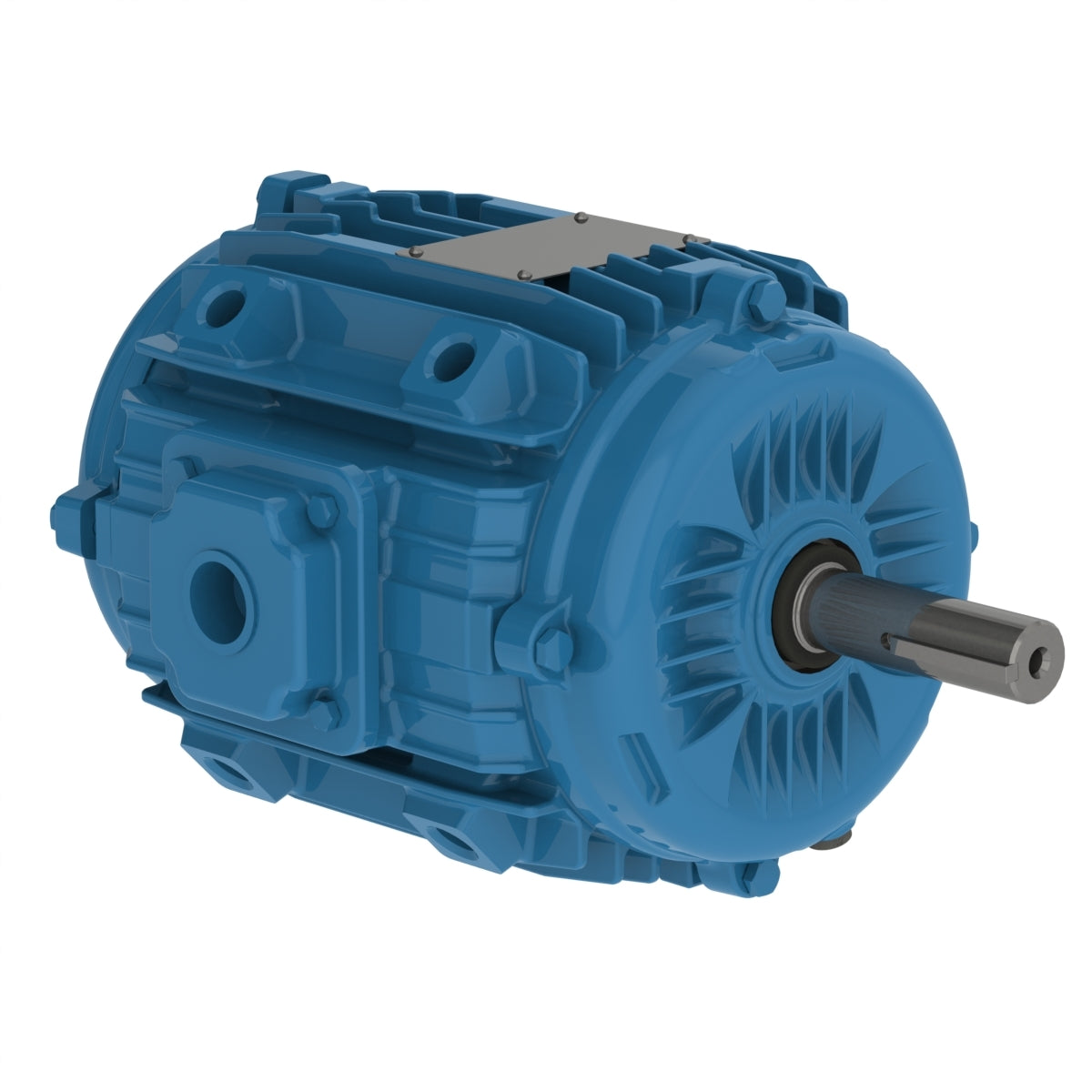

Weg Electric 00156ET3EPM143/5Y-W2, 1 1/2 Hp, 3600 Rpm, 145YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad Mounted, Premium Efficiency.

00156ET3EPM143/5Y-W2, 1 1/2 Hp, 3600 Rpm, 145YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad Mounted, Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO
