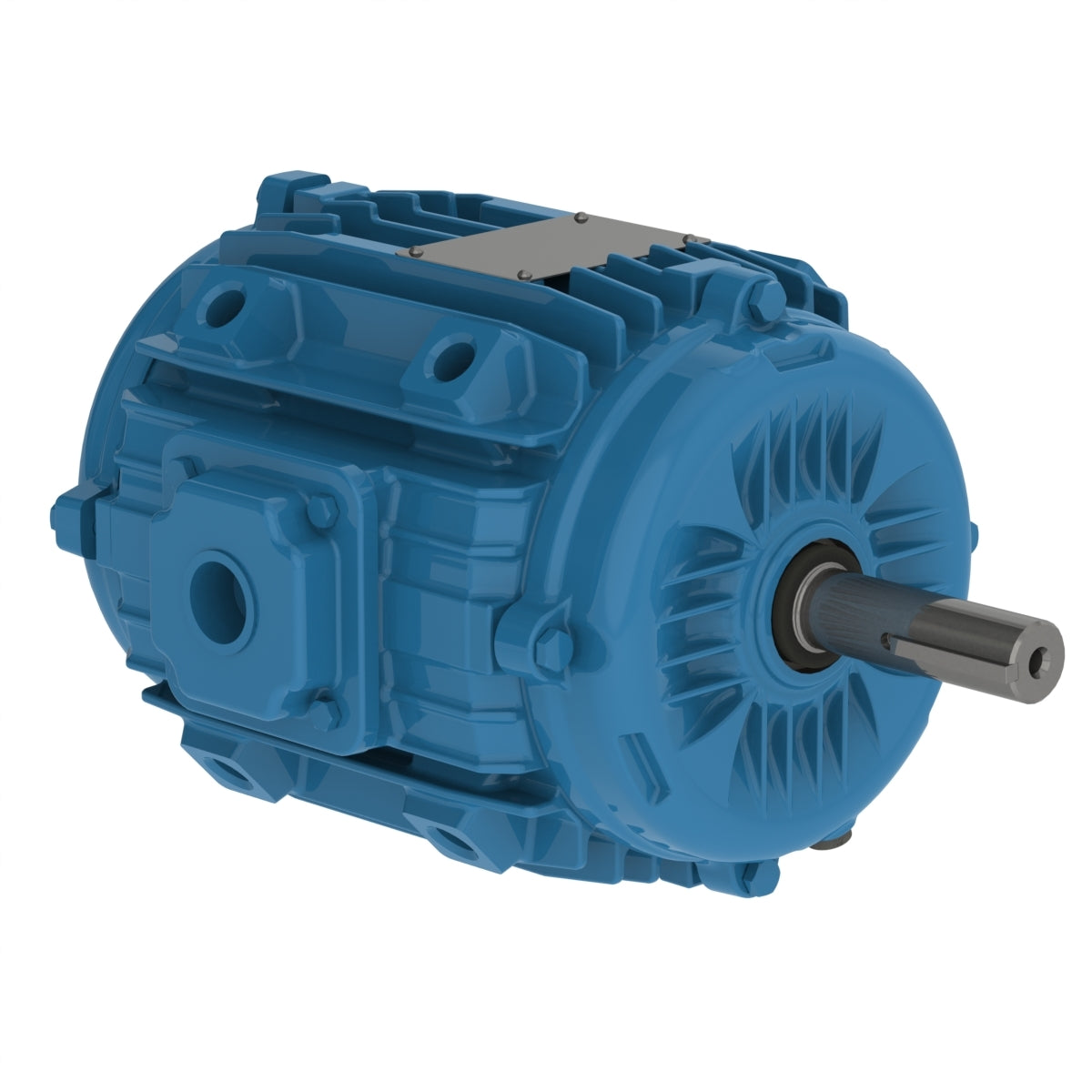

Weg Electric 00158ET3EPM143/5Y-W2, 1 1/2 Hp, 1800 Rpm, 145YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, Cooling Tower NEMA Premium Efficiency.

00158ET3EPM143/5Y-W2, 1 1/2 Hp, 1800 Rpm, 145YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, Cooling Tower NEMA Premium Efficiency.

Engineering Data

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO
