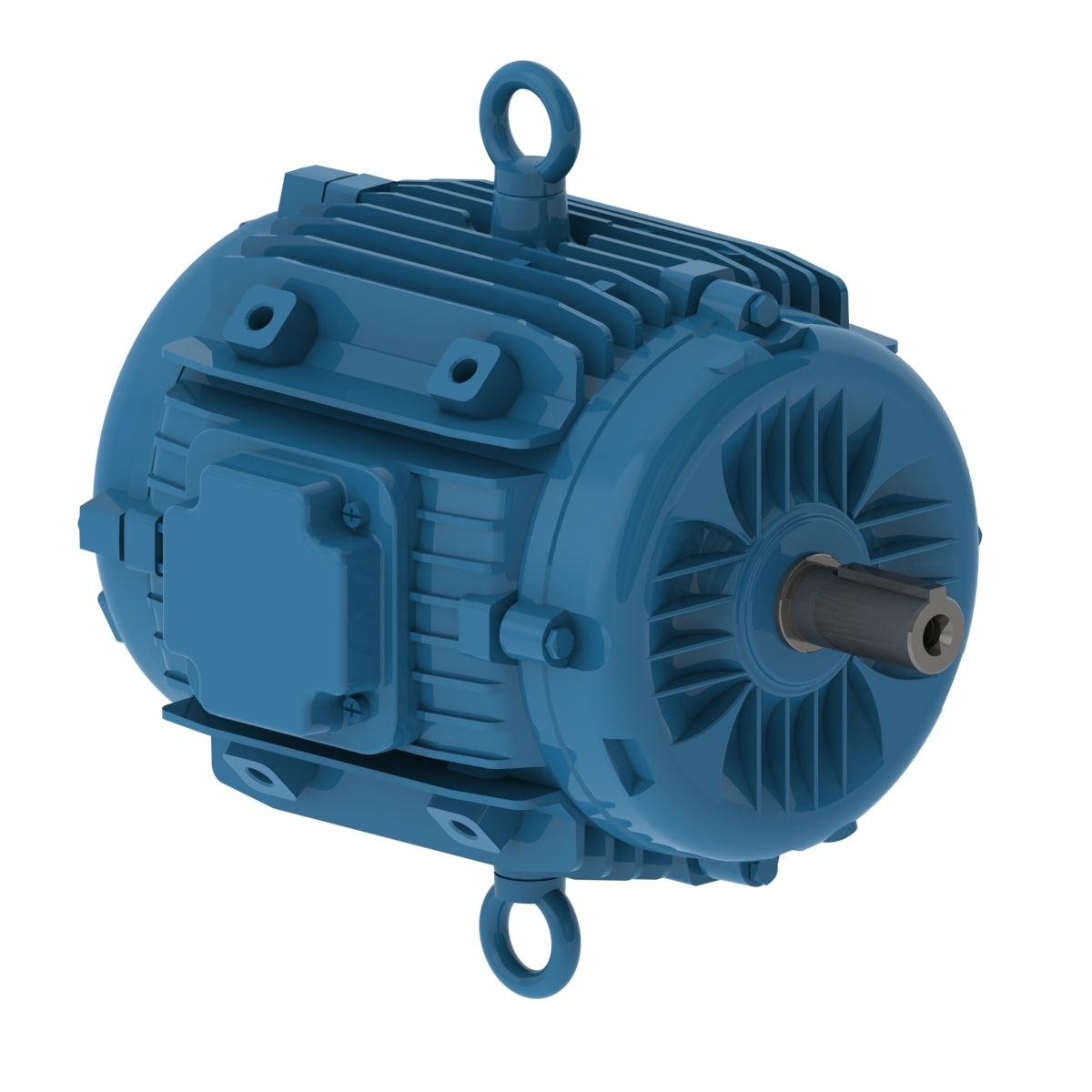

Weg Electric 00212ET3EPM182/4Y-W2, 2 Hp, 1200 Rpm, 184YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, Premium Efficiency.

00212ET3EPM182/4Y-W2, 2 Hp, 1200 Rpm, 184YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, Premium Efficiency.

Engineering Data

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 2 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 184YZ
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 208-230/460 V
Rated current 7.13-6.45/3.22 A
L. R. Amperes 53.5-48.4/24.2 A
LRC 7.5x(Code L)
No load current 0.000-4.50/2.25 A
Rated torque 9.02 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 55s (cold) 31s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
