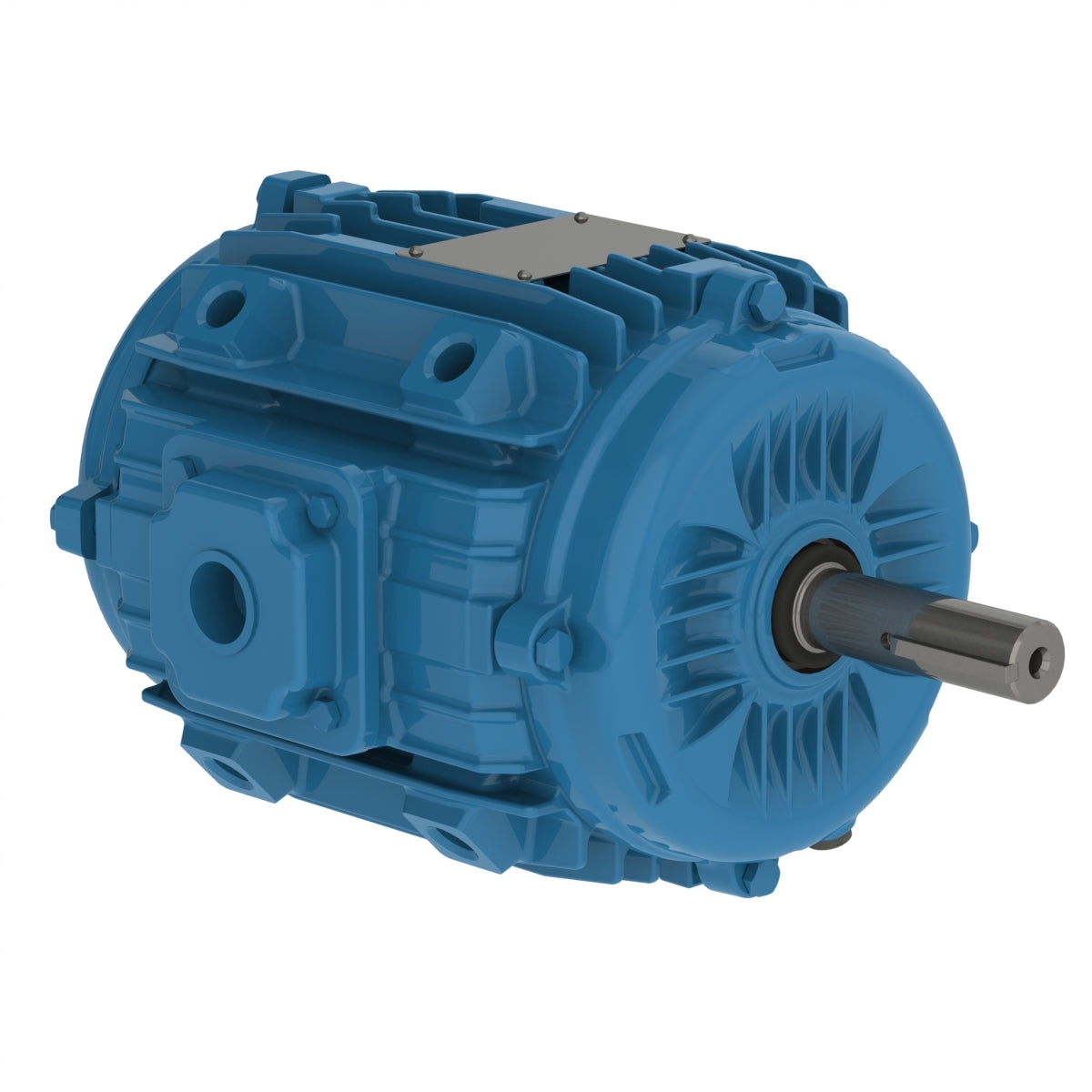

Weg Electric 00236ET3EPM143/5Y-W2, 2 Hp, 3600 Rpm, 145YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad Mounted, Premium Efficiency.

00236ET3EPM143/5Y-W2, 2 Hp, 3600 Rpm, 145YZ FR, 208-230/460 Vac, TEAO, 3 PH, Pad Mounted, Premium Efficiency.

Engineering Data

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 145YZ
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 208-230/460 V
Rated current 5.66-5.12/2.56 A
L. R. Amperes 50.4-45.6/22.8 A
LRC 8.9x(Code L)
No load current 0.000-1.80/0.900 A
Rated torque 3.02 ft.lb
Locked rotor torque 350 %
Breakdown torque 380 %
Locked rotor time 30s (cold) 17s (hot)
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
