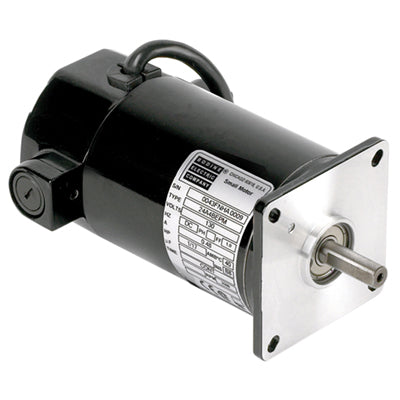

Bodine Electric, 0040, 1/50 Hp, 2500 Rpm, 8 Oz-in., 24A0BEPM, 24 Vdc., Flange Mount, No Accessory Shaft, Permanent Magnet DC Gearmotor

0040, 1/50 Hp, 2500 Rpm, 8 Oz-in., 24A0BEPM, 24 Vdc., Flange Mount, No Accessory Shaft, Permanent Magnet DC Gearmotor

SPECIFICATIONS

Speed (rpm) 2500
Rated Torque (oz-in) 8
Rated Voltage 24VDC
Amps 1.2
Motor HP 1/50
KT (oz-in/A) 8.3
KE (V/krpm) 6.1
Winding Resistance (ohms) 8.7
Winding Inductance (mH) 6.7
Rotor Inertia (oz-in-sec) 0.003
Radial Load (lbs) 25
Length XH (inch) 3.31
Weight (lbs) 2
Product Type 24A0BEPM
Accessory Shaft NO
Connection Diagram 07410101
