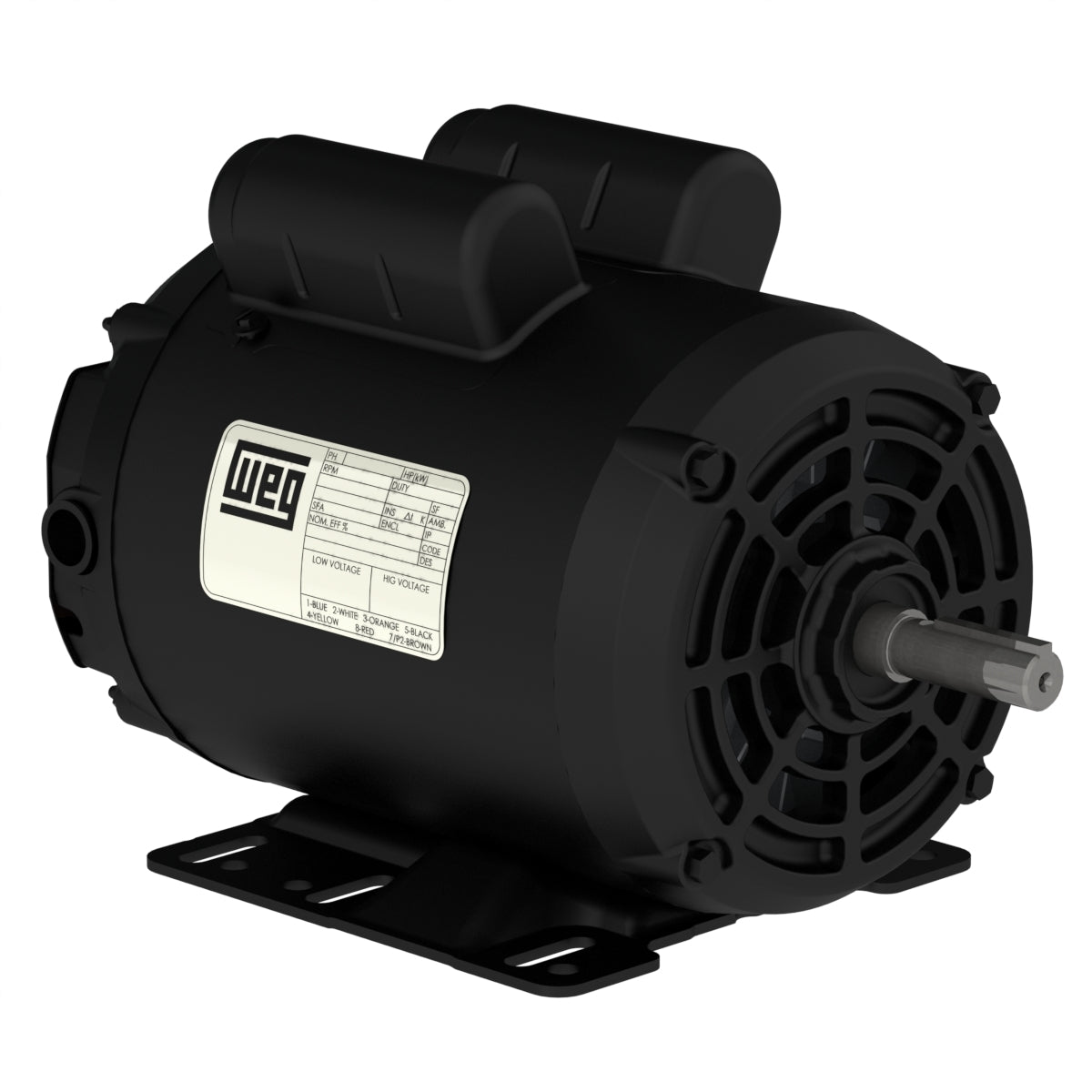

Weg Electric 00636OS1XCD182/4Y, 6.4 Hp, 3600 Rpm, 182/4 Frame, 240 Vac, ODP, 3 PH, Foot-mounted, Motor.

00636OS1XCD182/4Y, 6.4 Hp, 3600 Rpm, 182/4 Frame, 240 Vac, ODP, 3 PH, Foot-mounted, Motor.

Engineering Data

Motor especially conceived to meet the high torques required for application on air compressors. Ball bearings and manual thermal protection, among other electrical and mechanical characteristics, are available as standard feature in all the line and ensure long service life of the motor.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 240 V
Number of poles 2
Degree of Protection IP21
Synchronous speed 3600 rpm
Output rating 6.4 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 182/4
Output 6.4 HP (4.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3450 rpm
Slip 4.17 %
Rated voltage 240 V
Rated current 23.0 A
L. R. Amperes 129 A
LRC 5.6x(Code E)
No load current 5.08 A
Rated torque 9.74 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0759 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
