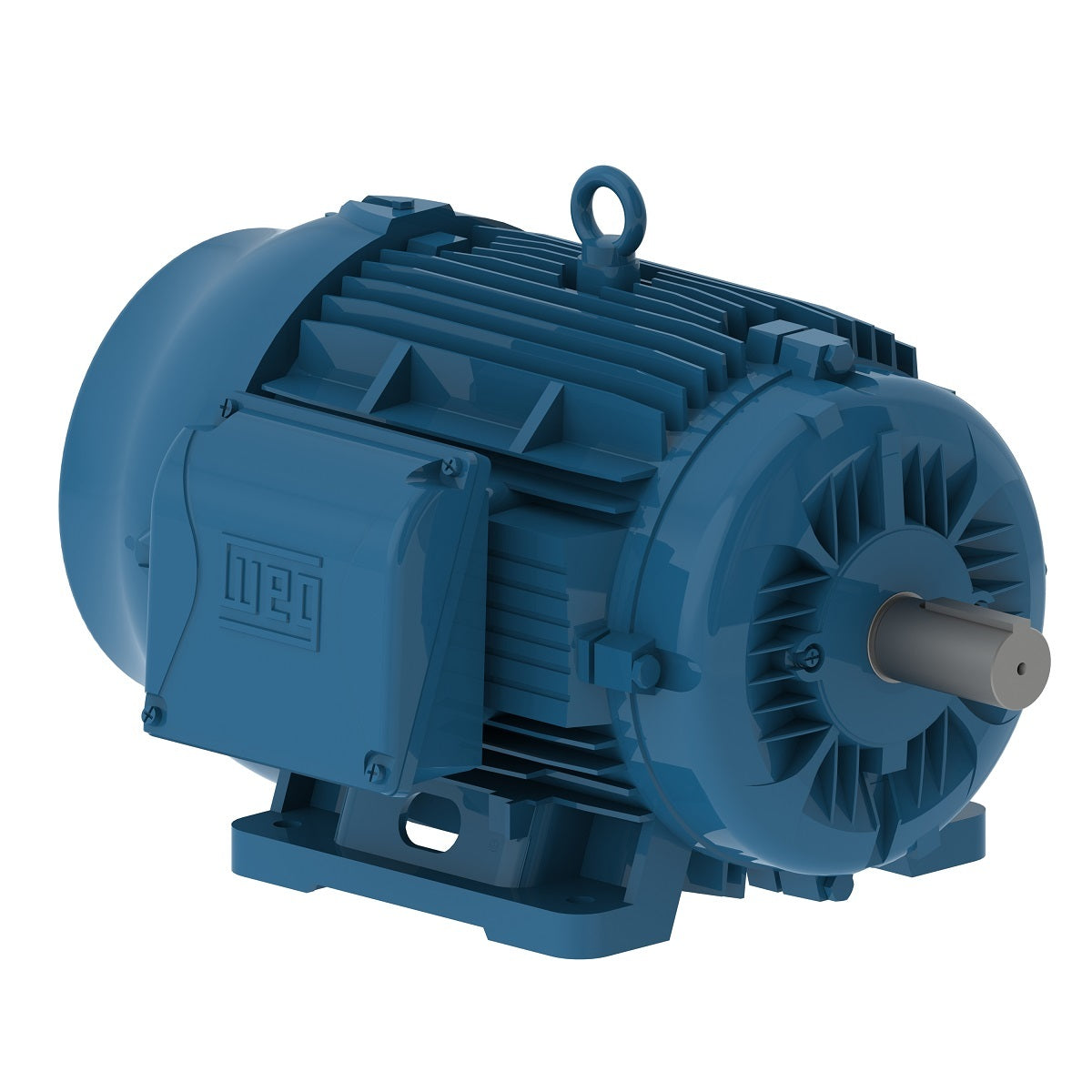

Weg Electric 01518ET3E254T-W22, 15 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12447059

Weg Electric 01518ET3E254T-W22, 15 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12447059

$1,644.72
$1,644.72
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01518ET3E254T-W22, 15 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12447059

SPECIFICATIONS

Frame 254/6T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 200-208 V
Rated current 41.4-39.8 A
L. R. Amperes 265-255 A
LRC 6.4x(Code G)
No load current 16.8-12.6 A
Rated torque 44.5 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 286 lb
