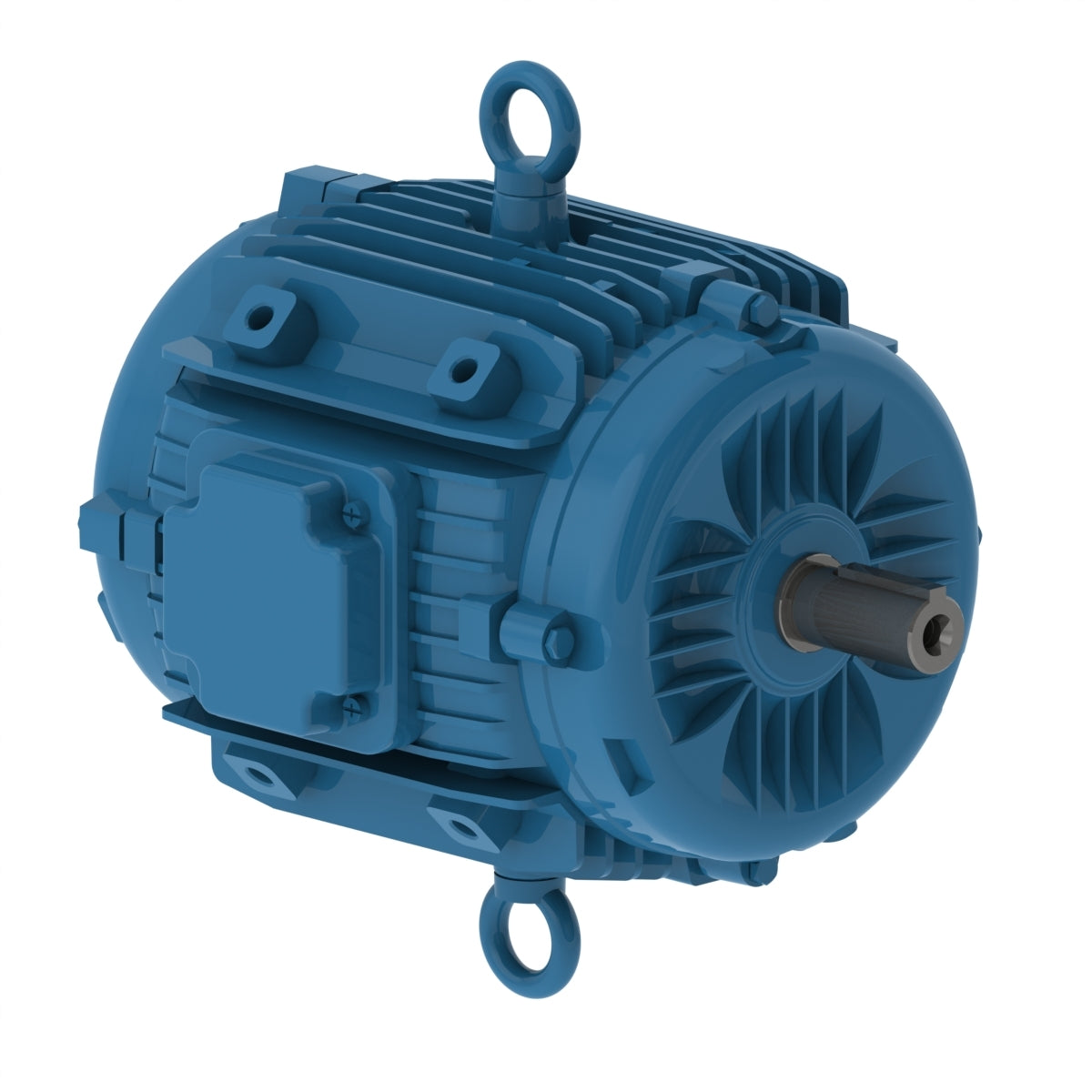

Weg Electric 02012ET3EPM284/6Y, 20 Hp, 286Y Frame, 1200 RPM, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, W22 NEMA Premium Efficiency.

02012ET3EPM284/6Y, 20 Hp, 286Y Frame, 1200 RPM, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, W22 NEMA Premium Efficiency.

Engineering Data

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 20 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 286Y
Output 20 HP (15 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 53.4-48.3/24.2 A
L. R. Amperes 331-299/150 A
LRC 6.2x(Code G)
No load current 0.000-19.0/9.50 A
Rated torque 89.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
