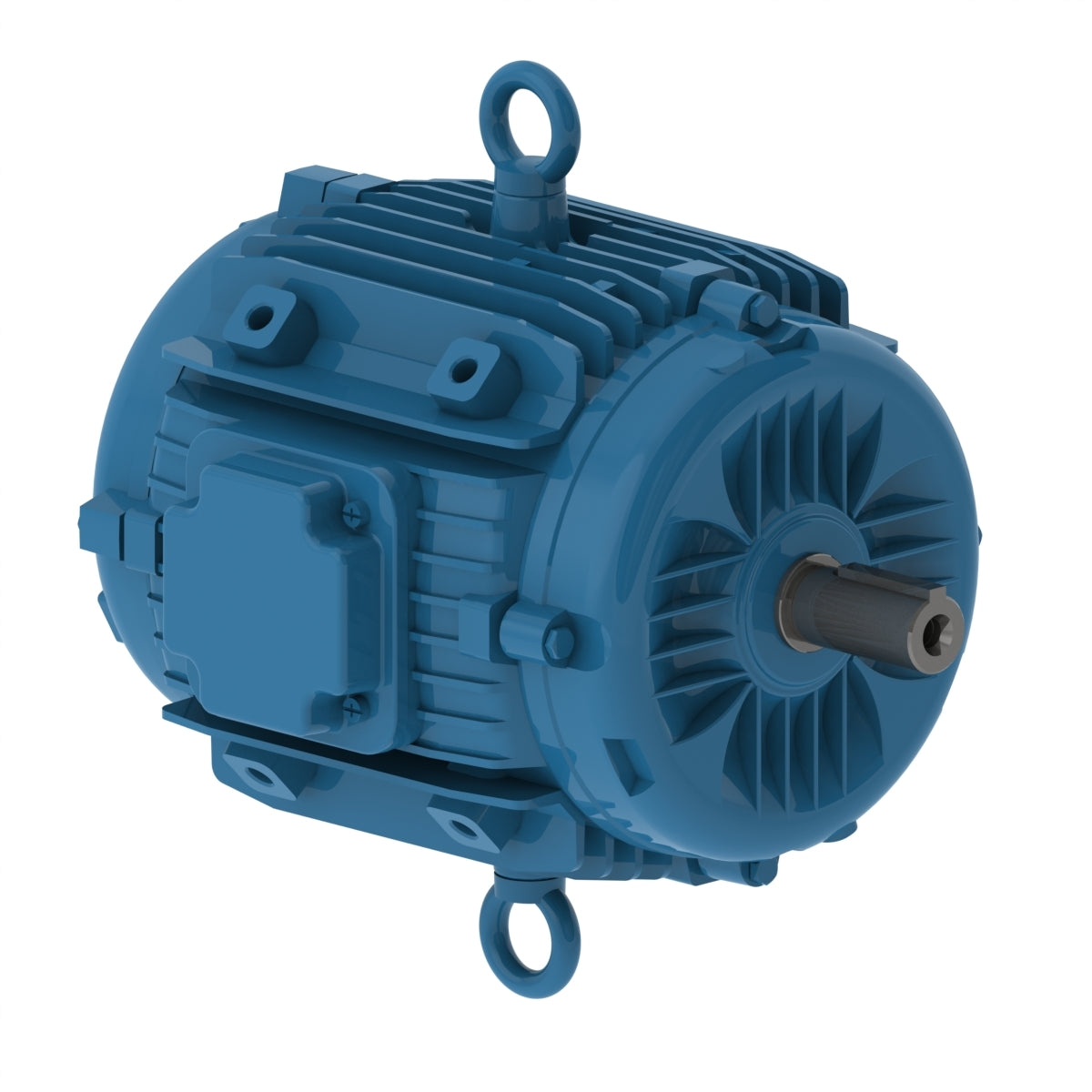

Weg Electric 03018ET3EPM284/6Y-W2, 30 Hp, 1800 Rpm, 286Y Frame, 208-230/460 Vac, TEAO, 3 PH, Pad Mounted, Premium Efficiency.

03018ET3EPM284/6Y-W2, 30 Hp, 1800 Rpm, 286Y Frame, 208-230/460 Vac, TEAO, 3 PH, Pad Mounted, Premium Efficiency.

Engineering Data

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting Pad mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 286Y
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 77.7-70.2/35.1 A
L. R. Amperes 474-428/214 A
LRC 6.1x(Code G)
No load current 22.4-26.0/13.0 A
Rated torque 89.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
