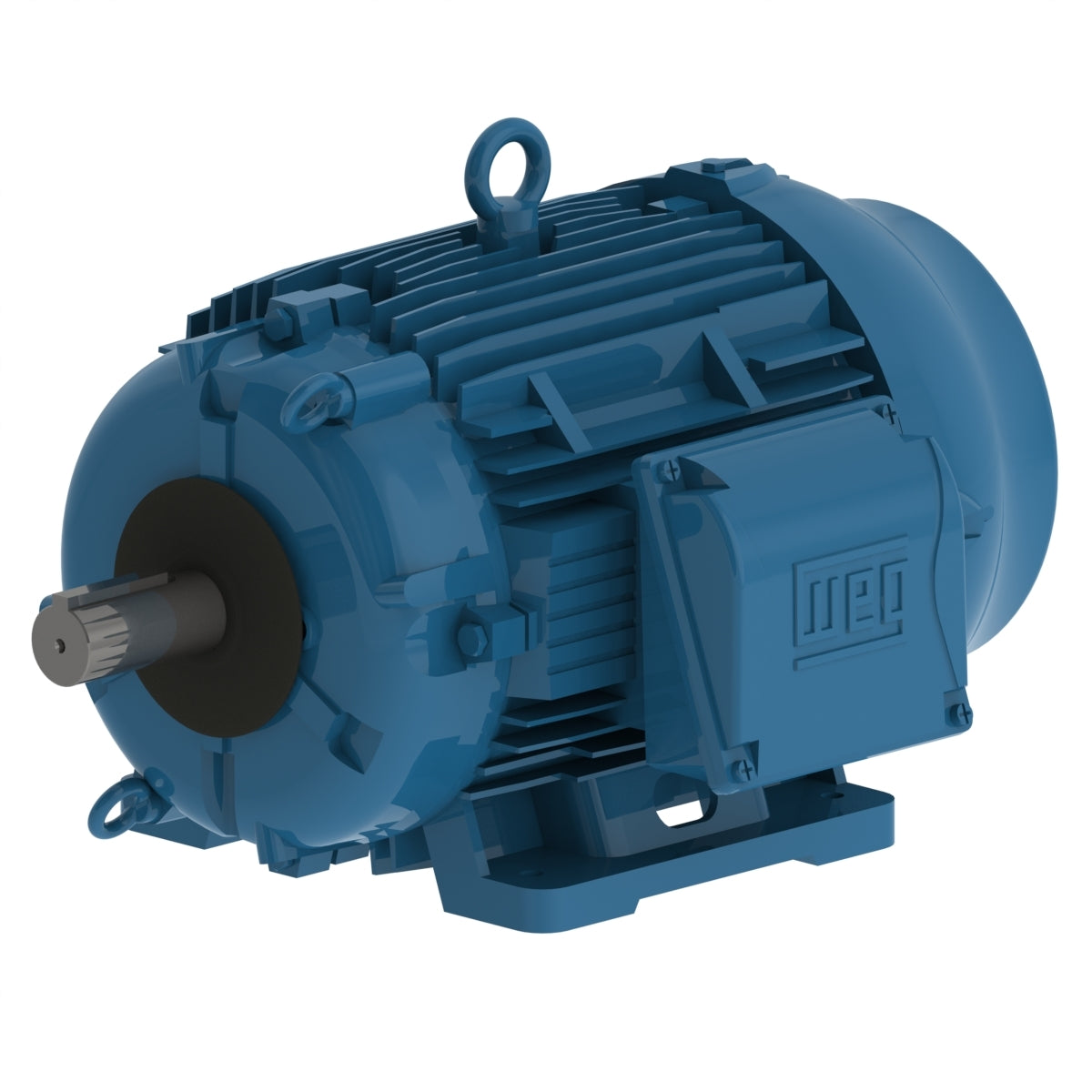

Weg Electric 03089EP3HCT324V-W22, 30 Hp, 1800 Rpm, 324T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, Cooling Tower High Efficiency.

03089EP3HCT324V-W22, 30 Hp, 1800 Rpm, 324T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 7.5/30 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 324T
Output 30 HP (22 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 575 V
Rated current 29.7 A
L. R. Amperes 241 A
LRC 8.1x(Code J)
No load current 13.6 A
Rated torque 88.5 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
