Industrial Motors

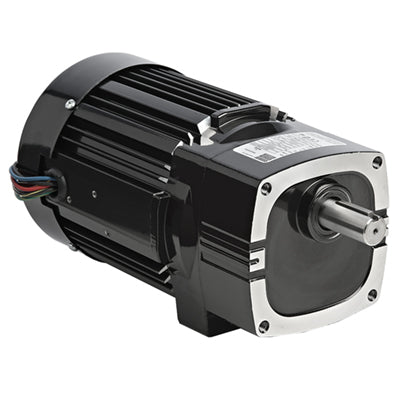

Bodine Electric 0662, 1/3 Hp, 17 Rpm, 10:1, 108 Lb-in., 48R6BFSI-F2, 115/230 Vac., Split Phase (with centrifugal switch), Non-Synchronous

Bodine Electric 0662, 1/3 Hp, 17 Rpm, 10:1, 108 Lb-in., 48R6BFSI-F2, 115/230 Vac., Split Phase (with centrifugal switch), Non-Synchronous

$835.25
$835.25
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 0662, 1/3 Hp, 17 Rpm, 10:1, 108 Lb-in., 48R6BFSI-F2, 115/230 Vac., Split Phase (with centrifugal switch), Non-Synchronous.

Specifications

Speed (rpm) 170
Rated Torque (lb-in) 109
Motor HP 1/3
Volts 115/230
Hz 60
Phases 1
Amps 4.8/2.4
Gear Ratio 10
Radial Load (lbs) 300
Length XH (inch) 10.47
Weight (lbs) 26
Connection Diagram 07410298
Capacitor Part Number N/A
Product Type 48R6BFSI-FX2
HPDecimal 0.3333
View full details

Attachments
