Industrial Motors

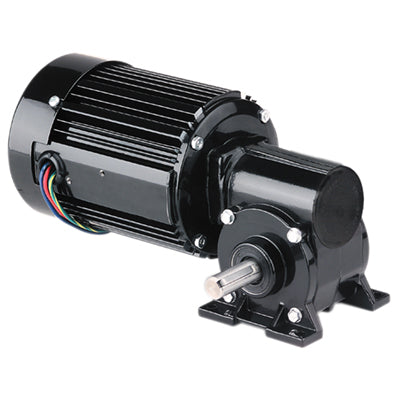

Bodine Electric 0678, 1/6 Hp, 38 Rpm, 40:1, 113 Lb-in., 42R5BFCI-5N, 115 Vac.,Capacitor Start , Permanent Split Capacitor, Non-Synchronous

Bodine Electric 0678, 1/6 Hp, 38 Rpm, 40:1, 113 Lb-in., 42R5BFCI-5N, 115 Vac.,Capacitor Start , Permanent Split Capacitor, Non-Synchronous

$686.96
$686.96
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 0678, 1/6 Hp, 38 Rpm, 40:1, 113 Lb-in., 42R5BFCI-5N, 115 Vac.,Capacitor Start , Permanent Split Capacitor, Non-Synchronous.

Specifications

Speed (rpm) 38
Rated Torque (lb-in) 113
Motor HP 1/6
Volts 115
Hz 60
Phases 1
Amps 2.1
Gear Ratio 40
Radial Load (lbs) 180
Length XH (inch) 10.25
Weight (lbs) 15.5
Connection Diagram 07410296
Capacitor Part Number 49401075
Product Type 42R5BFCI-5N
HPDecimal 0.1667
View full details

Attachments
