Industrial Motors

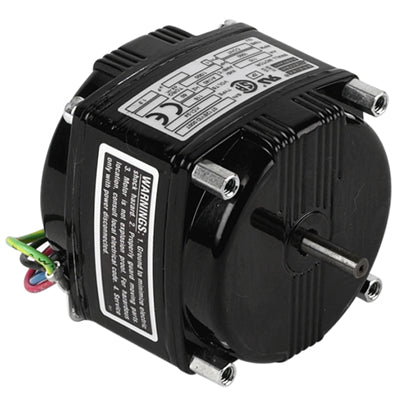

Bodine Electric 0701, 1/1600 Hp, 1800 Rpm, .35 oz-in., KYC-23, 115 Vac.,Capacitor Start (494 00046), Permanent Split Capacitor, Synchronous

Bodine Electric 0701, 1/1600 Hp, 1800 Rpm, .35 oz-in., KYC-23, 115 Vac.,Capacitor Start (494 00046), Permanent Split Capacitor, Synchronous

$217.73
$217.73
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 0701, 1/1600 Hp, 1800 Rpm, .35 oz-in., KYC-23, 115 Vac.,Capacitor Start (494 00046), Permanent Split Capacitor, Synchronous.

Specifications

Speed (rpm) 1800
Rated Torque (oz-in) 0.35
Motor HP 1/1600
Voltage 115
Hz 60
Phases 1
Amps 0.077
Radial Load (lbs) 5.7
Length XH (inch) 1.84
Weight (lbs) 1.6
Connection Diagram 07410019
Capacitor Part Number 49400046
Product Type KYC-23
HP Decimal 0.0006
