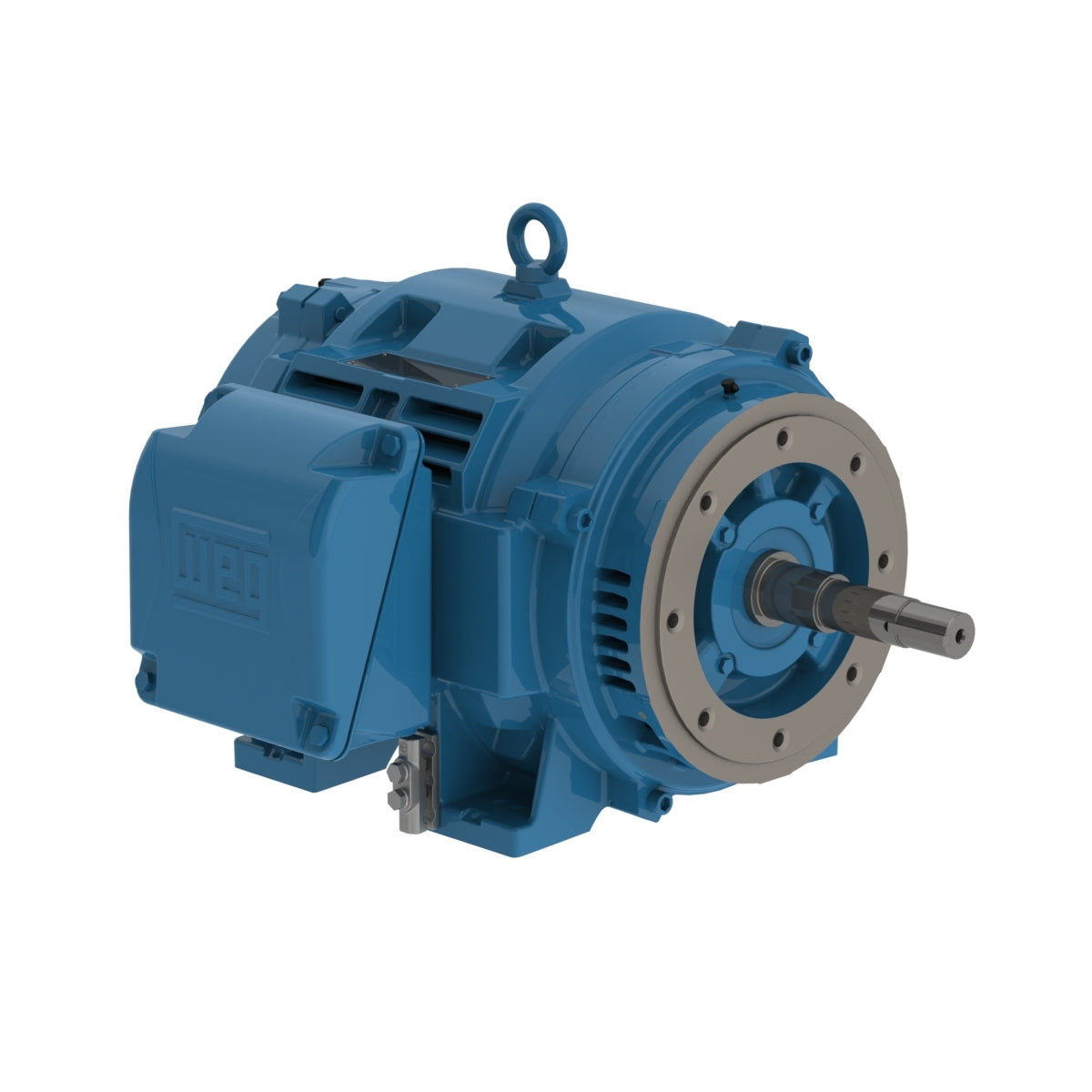

Weg Electric 07518OT3E365JP-W40, 75 Hp, 364/5JP Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

07518OT3E365JP-W40, 75 Hp, 364/5JP Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5JP
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 171/85.5 A
L. R. Amperes 1163/581 A
LRC 6.8x(Code G)
No load current 61.0/30.5 A
Rated torque 221 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 16.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
