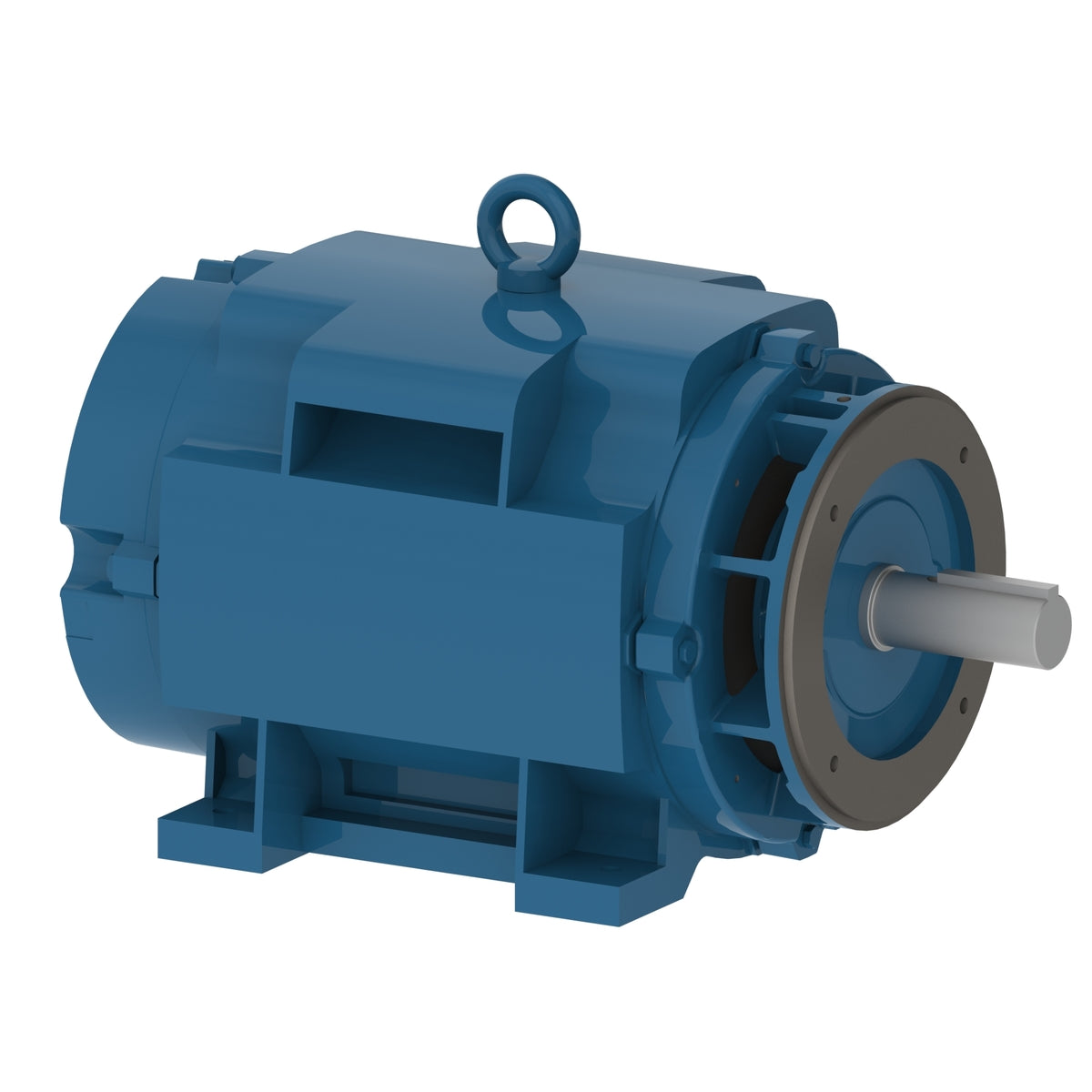

Weg Electric 07518OT3H365TSC-F2, 75 Hp, 1800 Rpm, 364/5TSC Frame, 575 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency.

07518OT3H365TSC-F2, 75 Hp, 1800 Rpm, 364/5TSC Frame, 575 Vac, ODP, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange C
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 364/5TSC
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 575 V
Rated current 66.8 A
L. R. Amperes 448 A
LRC 6.7x(Code G)
No load current 21.6 A
Rated torque 221 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 19.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
