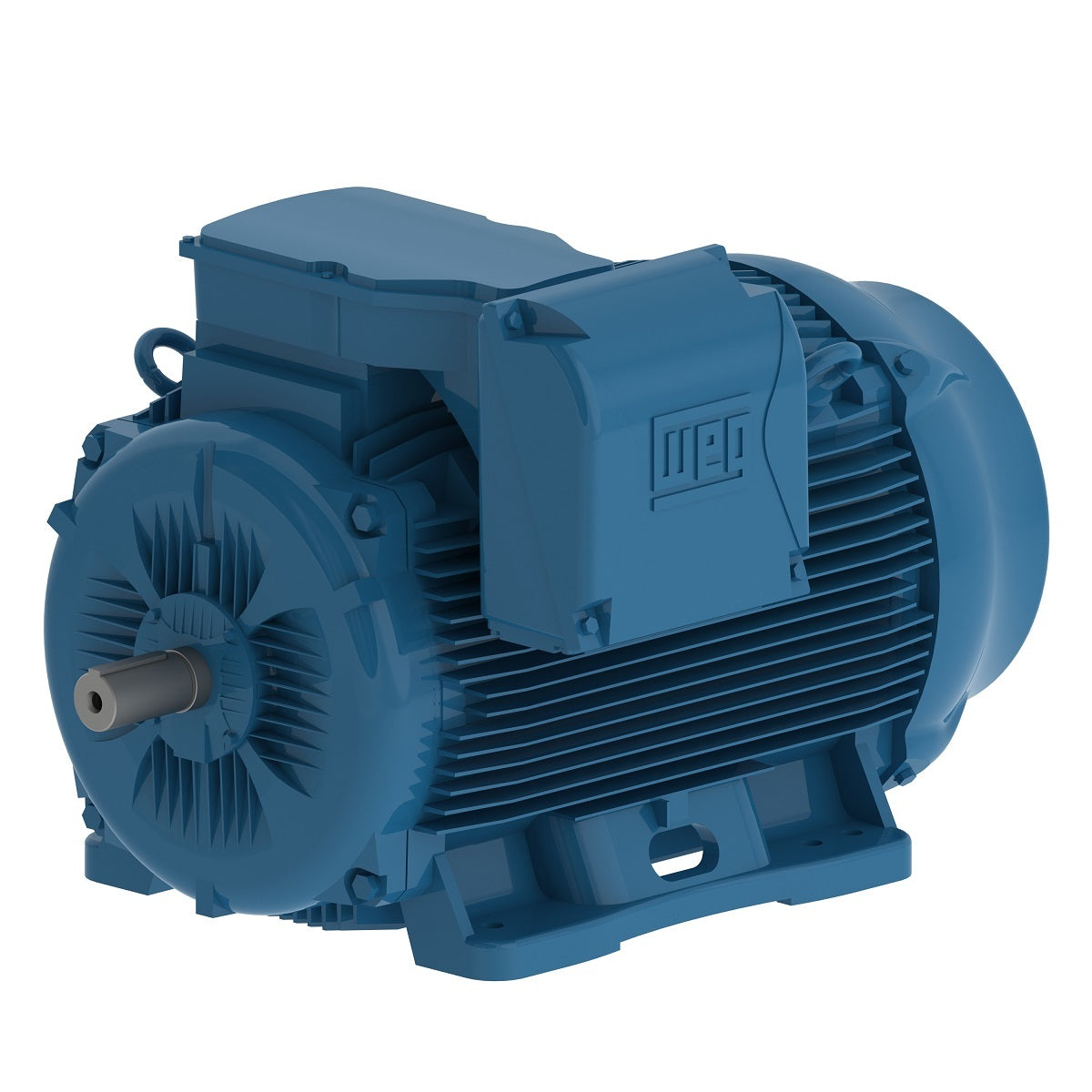

Weg Electric 07536ET3Y280S/M-W22, 100 Hp, 3600 Rpm, 280S/M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

07536ET3Y280S/M-W22, 100 Hp, 3600 Rpm, 280S/M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 100 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 280S/M
Output 100 HP (75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3580 rpm
Slip 0.56 %
Rated voltage 460 V
Rated current 111 A
L. R. Amperes 899 A
LRC 8.1
No load current 29.7 A
Rated torque 147 ft.lb
Locked rotor torque 240 %
Breakdown torque 350 %
Locked rotor time 106s (cold) 59s (hot)
Moment of inertia (J) 28.6 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 81.0 dB(A)
