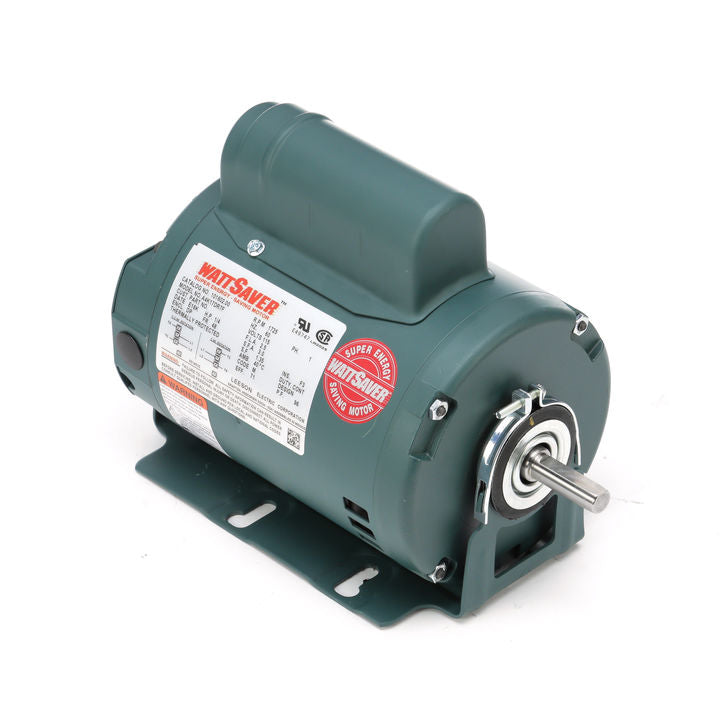

100146.00, 3/4 HP, 1800 Rpm, 56 FR, DP, 115-208-230 Vac, 1 PH, Resilient Base, General Purpose

100146.00, 3/4 HP, 1800 Rpm, 56 FR, DP, 115-208-230 Vac, 1 PH, Resilient Base, General Purpose

Engineering Data
Volts 208-230 Volts 460 Volts
F.L. Amps 2.7-2.8 F.L. Amps 1.4 F.L. Amps
S. F Amps 3.2-3.2 S. F Amps 1.6 S. F Amps

RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE TD
KW .56
Frame S56 Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 75 Eff 75% PF 67
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number CE Bearing PE 6203
Load Type Inverter Type NONE Speed Range NONE

Motor Wt. 21.6 LB Enclosure DP Lubrication VERIFY
Nameplate A-92005-4 Mounting RESILIENT BASE Rotation REV
Assembly LO100146 Shaft Dia. 5/8 IN Ext. Diag. 005010.01
Cust Part No Outline 031624-650 Ext. Diag2
Packaging B Winding TE48412
Carton Label Leeson Gen Purpose GROUP: 3
Iris Paint BLUE - LEESON (ENAMEL) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM OZ-FT Inertia (WK²) .055 LB-FT^2
Torque 36.5(Full Load) 162(Break Down) 154.6(Pull Up) 137.6(Locked Rotor)
CURRENT (amps) 2.65(Full Load) 13.4(Break Down) 17.6(Pull Up) 17.2(Locked Rotor)
Efficiency (%) 0(Full Load) 73(75% Load) 66.5(50% Load) 51.5(25% Load)
PowerFactor (Full Load) 62(75% Load) 50(50% Load) 34.5(25% Load)

Load Curve Data @60 Hz, 460 Volts, 3/4 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.95 0.145 1800 0.0 0.0 49.0 0.0 -
0.25 2.0 0.27 1782 8.92 51.5 34.5 0.0 -
0.5 2.2 0.42 1765 17.9 66.5 50.0 0.0 -
0.75 2.4 0.58 1748 27.04 73.0 62.0 0.0 -
1.0 2.8 0.74 1725 36.0 75.5 70.5 45.0 -
1.25 3.2 0.91 1710 45.97 77.5 77.5 65.0 -
1.5 3.4 1.1 1687 55.76 76.5 82.0 0.0 -
1.15 3.0 0.85 1720 41.6 76.0 75.0 55.0 -
