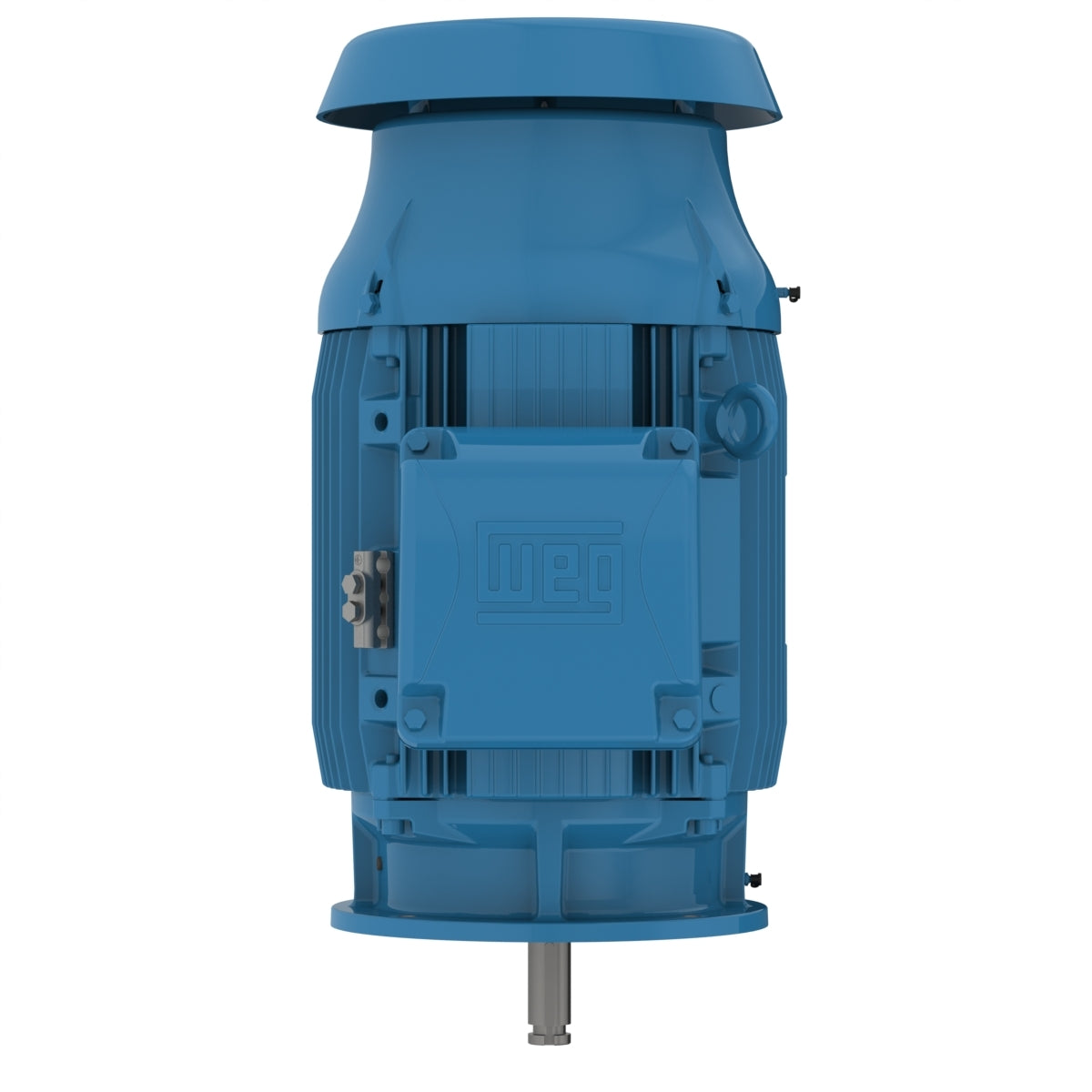

Weg Electric 10018ET3E405HP-W22, 100 Hp, 404/5HP Frame, 1800 RPM, 230/460 Vac, TEFC, 3 PH, Footless, W22 P Base Premium Efficiency.

10018ET3E405HP-W22, 100 Hp, 404/5HP Frame, 1800 RPM, 230/460 Vac, TEFC, 3 PH, Footless, W22 P Base Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 100 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5HP
Output 100 HP (75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 226/113 A
L. R. Amperes 1650/825 A
LRC 7.3x(Code H)
No load current 76.0/38.0 A
Rated torque 295 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 29.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
